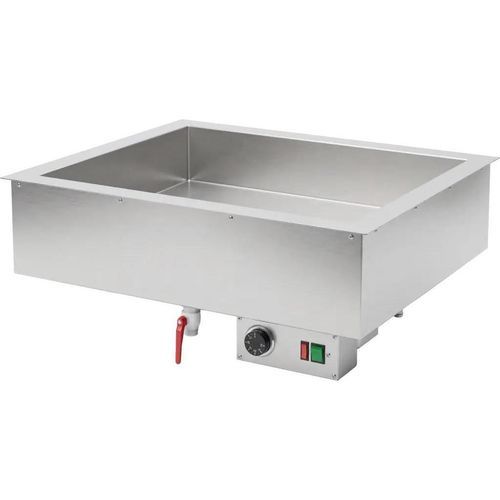

Electric bain-marie STANDARD

Summary
Flexible in use: heated food well with stepless temperature control, suitable for GN containers; temperature range approx. 30°C to 90°C.

Description

• Stepless temperature control for precise warming
• Adaptable to a variety of food inserts and GN containers
• Temperature range: approx. 30°C to 90°C
• Simple cut-out installation: circumferential hanging rim approx. 13 mm
• Control unit pre-mounted under the bain-marie; alternative mounting in a counter panel possible (cable length approx. 120 cm)
• Safe heating: multiple heating elements arranged over a large area under the tank base
• Each heating element fitted with an overheating thermostat

Available variants (Article No. | Label | Display height | Max Item Height | Standard width | Width)
5476 | Bain-Marie Standard 2/1 - 100 | 100 mm | - | 2/1 | 732 mm
5477 | Bain-Marie Standard 3/1 - 100 | 100 mm | - | 3/1 | 1057 mm
5478 | Bain-Marie Standard 4/1 - 100 | 100 mm | - | 4/1 | 1382 mm
5480 | Bain-Marie Standard 2/1 - 150 | 150 mm | 150 mm | 2/1 | 732 mm
5481 | Bain-Marie Standard 3/1 - 150 | 150 mm | 150 mm | 3/1 | 1057 mm
5482 | Bain-Marie Standard 4/1 - 150 | 150 mm | 150 mm | 4/1 | 1382 mm
5484 | Bain-Marie Standard 2/1 - 200 | 200 mm | - | 2/1 | 732 mm
5485 | Bain-Marie Standard 3/1 - 200 | 200 mm | - | 3/1 | 1057 mm
5486 | Bain-Marie Standard 4/1 - 200 | 200 mm | - | 4/1 | 1382 mm
5489 | Bain-Marie Standard 2 x 2/1 - 150 | 150 mm | 150 mm | 2x2/1 | 1142 mm
5490 | Bain-Marie Standard 2 x 2/1 - 200 | 200 mm | - | 2x2/1 | 1142 mm
5491 | Bain-Marie Standard 2/1 L - 150 | 150 mm | 150 mm | 2/1 L | 1142 mm
5492 | Bain-Marie Standard 2/1 L - 200 | 200 mm | - | 2/1 L | 1142 mm
5495 | Bain-Marie Standard 2 x (1/1+1/3) - 150 | 150 mm | 150 mm | 2x(1/1+1/3) | 732 mm
5496 | Bain-Marie Standard 2 x (1/1+1/3) - 200 | 200 mm | - | 2x(1/1+1/3) | 732 mm
5497 | Bain-Marie Standard 3 x (1/1+1/3) - 150 | 150 mm | 150 mm | 3x(1/1+1/3) | 1057 mm
5498 | Bain-Marie Standard 3 x (1/1+1/3) - 200 | 200 mm | - | 3x(1/1+1/3) | 1057 mm
5501 | Bain-Marie Standard 2 x (1/1+1/2) - 150 | 150 mm | 150 mm | 2x(1/1+1/2) | 732 mm
5502 | Bain-Marie Standard 2 x (1/1+1/2) - 200 | 200 mm | - | 2x(1/1+1/2) | 732 mm
5503 | Bain-Marie Standard 3 x (1/1+1/2) - 150 | 150 mm | 150 mm | 3x(1/1+1/2) | 1057 mm
5504 | Bain-Marie Standard 3 x (1/1+1/2) - 200 | 200 mm | - | 3x(1/1+1/2) | 1057 mm
5564 | Bain-Marie Standard 1/1 - 100 | 100 mm | - | 1/1 | 407 mm
5565 | Bain-Marie Standard 1/1 - 150 | 150 mm | 150 mm | 1/1 | 407 mm
5566 | Bain-Marie Standard 1/1 - 200 | 200 mm | - | 1/1 | 407 mm
5594 | Bain-Marie Standard 1 x 2/1 - 150 | 150 mm | 150 mm | 1x2/1 | 612 mm
5599 | Bain-Marie Standard 1 x 2/1 - 200 | 200 mm | - | 1x2/1 | 612 mm
5595 | Bain-Marie Standard 1 x (1/1+1/3) - 150 | 150 mm | 150 mm | 1x(1/1+1/3) | 407 mm
5596 | Bain-Marie Standard 1 x (1/1+1/3) - 200 | 200 mm | - | 1x(1/1+1/3) | 407 mm
5597 | Bain-Marie Standard 1 x (1/1+1/2) - 150 | 150 mm | 150 mm | 1x(1/1+1/2) | 407 mm
5598 | Bain-Marie Standard 1 x (1/1+1/2) - 200 | 200 mm | - | 1x(1/1+1/2) | 407 mm

Accessories & related items (examples)
1025 | Separator bar GN 1/1, lengthwise
3010 | Separator bar GN 1/1, transverse | Gastro-Norm size (325 mm x 530 mm)
3017 | Accessory for Bain-Marie
5474 | Standpipe valve for Bain-Marie SRV
8108 | Divider bar GN 1/1, lengthwise | Gastro-Norm size (325 mm x 530 mm) | 24 mm
8109 | Divider bar GN 1/1, lengthwise | Gastro-Norm size (325 mm x 530 mm) | 24 mm
8118 | Merchandise Shelf for Bain-Marie GN 1/1 | Gastro-Norm size (325 mm x 530 mm)

Technical specifications

• Temperature range: approx. 30°C to 90°C
• Stepless temperature control
• Installation: circumferential hanging rim approx. 13 mm for cut-out installation
• Control unit: pre-mounted underneath; optional mounting in counter panel (thermostat cable approx. 120 cm)
• Heating: multiple heating elements arranged widely under the tank base; each element has an overheating thermostat
• Wide range of available variants covering multiple standard widths (1/1, 2/1, 3/1, 4/1 and combinations) and display heights (100 mm, 150 mm, 200 mm)
• Accessories available: separator/divider bars, standpipe valve, merchandise shelf, etc.
