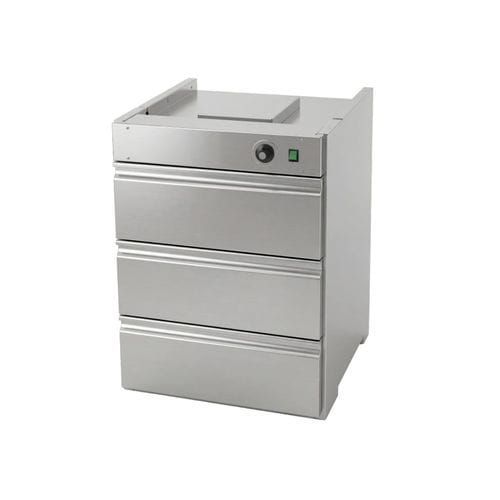

Cup warmer 13710

Short description
Recirculation warming cabinet designed as a built-in module with a height of 810 mm, intended for warming cups and compatible 500 x 500 mm dish racks. Fan-heated unit with 1200 W output and stainless-steel construction for integration into worktops or rear cabinet units.

For module – cup warmer (height 710 mm)

• Also available with 3 pull-outs
• Dish racks and cups are not included
• Designed for easy transfer: remove the dish rack from the dishwasher and place it, with cups, into the warmer
• Eliminates manual restacking of cups
• Fan-heated warming cabinet manufactured as a built-in module for counter or rear-cabinet integration
• Fan heating with circulating-air blower ensures even and rapid heat distribution
• Double-walled construction with internal insulation
• Interior and exterior surfaces in stainless steel (material 1.4301)
• Three or four drawers with stainless-steel components and telescopic runners
• Heating output: 1200 W
• Service-friendly design for dish racks 500 mm x 500 mm

For module cup warmer (height 810 mm)

• Reliable technology for daily commercial use
• Heating output 1200 W
• Service-friendly for dish racks 500 mm x 500 mm
• Perforated insert shelf available as accessory (article 13719) — usable pull-out height reduced by approx. 15 mm
• Fan-heated warming cabinet as built-in module; cabinet body made completely of stainless steel (material 1.4016); front exterior with ground surface; externally exposed open insulation
• Dimensions: Width 600 mm × Height 810 mm × Body depth 600 mm (panel protrusion noted)
• Can be mounted together with refrigerated base units of the KUB 810 series and dry modules 810 mm on plinth rails (40 or 50 mm). Plinth rail ordered separately per linear meter

Variants

• Article 13710 — Cup warmer with three drawers — 3 drawers
• Article 13711 — Cup warmer with four drawers — 4 drawers

Technical specifications

• Type: Built-in recirculation cup warmer (module)
• Heater type: Fan heating with circulating-air blower
• Heating output: 1200 W
• Construction: Double-walled with internal insulation; externally exposed open insulation for 810 mm variant
• Materials: Interior/exterior stainless steel (material 1.4301; cabinet body 1.4016 for 810 mm variant)
• Available drawer counts: 3 or 4 (articles 13710, 13711)
• Drawer equipment: Stainless-steel telescopic runners
• Compatibility: Dish racks 500 mm x 500 mm (dish racks and cups not included)
• Accessory: Perforated insert shelf (article 13719) — reduces usable pull-out height by ~15 mm
• Dimensions (810 mm module): Width 600 mm × Height 810 mm × Depth 600 mm (panel protrusion)
• Installation: Integrable into counter units or rear cabinet units; compatible with KUB 810 refrigerated bases and 810 mm dry modules; requires separate plinth rail (40 or 50 mm) per linear meter
