With unbelievable depth and interlayers delicately and dimensionally preserved, 3form Poured Glass is a dramatic centerpiece. This decorative, architectural glass is a premium product, a memorable beauty to anchor your interior installation.
Material Specs:
Gauges:
19mm
Pattern:
linear
Avail. Colors:
n/a
Width:
48" / 1219mm
Length:
96" / 2438mm
Surface Area:
32 sq.ft. / 3 sq.m
Notes:
Gauge variation is +/- 1/8". Final product may contain random air bubbles which may not be seen in these images or in samples.
|
|
With unbelievable depth and interlayers delicately and dimensionally preserved, 3form Poured Glass is a dramatic centerpiece. This decorative, architectural glass is a premium product, a memorable beauty to anchor your interior installation.
Material Specs:
Gauges:
19mm
Pattern:
linear
Avail. Colors:
n/a
Width:
48" / 1219mm
Length:
96" / 2438mm
Surface Area:
32 sq.ft. / 3 sq.m
Notes:
Gauge variation is +/- 1/8". Final product may contain random air bubbles which may not be seen in these images or in samples.
|
|
|
|
|
|

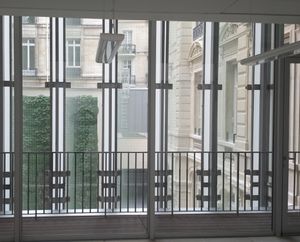

AMIRAN® anti-reflective glass
AMIRAN® the glass you can't see
AMIRAN® is an optical interference anti-reflective glass, dip-coated on both sides, with a residual reflection of approximately 1%. In cases where there is a drastic difference in the level of light in front of and behind ordinary glass, it is usually quite difficult to view objects outside from the inside. In order to avoid these negative effects, more and more users are turning to AMIRAN®, the nearly invisible glass from SCHOTT
AMIRAN® - The most important advantages at one glance
Fifteen-year track record; proven in hundreds of installations worldwide
Triple dip coating and high temperature processing ensure maximum durability
High light transmission; 98% vs 91% for ordinary float glass
Can be installed in any frame or glazing system suitable for regular window glass
Can be tempered or laminated for safety glazing
Cuts cooling costs because less lighting is required to overcome glare
Cuts construction costs; there's no need to provide awnings or tilted glazings to control glare
Less fading of displayed items, thanks to reduced UV transmission
Increases sales appeal of displayed products; also allows entire store interior to become part of general window display
Greater visibility in monitoring applications, resulting in greater accuracy and safety
Enhances the view in restaurants throughout the day; eliminates the glare which often occurs at certain morning, afternoon, and evening hours
Displayed colors appear truer
|
|
SGG ART GLASS PLAQUE: Flashed Glass from Verrerie of Saint-Just in France
A fine layer of enamel is covering the glass. The graving is possible.
project Harfleur in France
|
|
|
Asian fusion design never felt so natural with this colorless, translucent panel infused with bamboo.
|
|
|
SGG ART GLASS BARIO: Mouth blown glass, can be laminated or silvered. Can be used for a partition, a wall, table top, artistic lamps..
|
|
|
Bring the mysterious, pearlescence of the ocean into your home with this colorless, playful panel infused with capiz shells.
|
|
Panels and tiles can be made up to required size and thicknesses to fit interior spaces. Panels can function as windows, room dividers or as decorative art as an alternative to paintings. Light can also be fitted behind panels to function as decorative lighting.
Glass panels are incorporated with blown shards and stringers. First, Elin blows the coloured shards and stringers to achieve unique colour combinations, then they are put into the casting mould to be fired, together with clear glass pieces in several layers to achieve a 3-dimensional design.
Every commission is unique and tailor-made to the client's requirements.
|
|
|
|
|
|
Playing with transparencies
SatenDecor® artistic designs create harmonies or contrasts through a seductive game of transparencies. Here we present different styles which highlight the glass when creating atmospheres and decorating. Designs that communicate with us through their shapes and the smoothness of their texture. We also create customized designs for our clients. Consult with us your idea.
CHARACTERISTICS
Colours: extraclear, white, bronze, grey, green and pink.
Thickness: 3, 4, 5, 6, 8, 10 and 12 mm.
Size: Standard 225 x 321 cm / Optional: 180 x 321 cm.
(Consult for other colours. Also available: laminated and mirror).
APPLICATIONS
Especially recommended for doors, partition screens and walls, furniture in general, shower cabins and also exterior architecture.
Offices, homes, public areas (museums, hotels, schools...), industrial premises...
ATTRIBUTES AND QUALITY
> Base: float glass norm UNE-EN 572-2
> High resistance to stains and fingerprints.
> Can be cut, bevelled, curved, drilled, tempered and laminated.
> Awarded the ISO 9001 (quality control) and ISO 14001 (Environmental safety) Standard Certificates.
|
|
Dalles de verre de Saint-Just: can be used for decorative / stained glass applications. Can be cutted with watter jet, sanblasting is possible.
Due to the thickness, intensity of the colors is strong
|
|
|
|
|
|
SatenGlas®
Acid-etched Glass. Elegant minimalism, quality opacity.
SEVASA is well known for its high quality range of acid-etched crystal glass:
SatenGlas® - SatenLux® - LuxMat®
3 types of opacity and finish that allow you to choose its level of luminosity and light diffusion, smooth to the touch, brilliance, stain-resistant and an antireflection effect for the most versatile applications*.
Ideal for
- Creating atmospheres in decoration and interior architecture,
- Designing furniture, doors, kitchens, baths, stairs, windows...
- Building construction and exterior architecture, facades.
Guaranteed homogenous quality and ISO 9001 (quality control) and ISO 14001 (Environmental safety) Standard Certifications.
Also available in Jumbo size.
CHARACTERISTICS SATENGLAS:
Colours: extraclear, clear, bronze, grey, green and blue.
Thickness: 3, 4, 5, 6, 8, 10, 12, 15 and 19 mm.
Size: 201, 225, 240, 252 and 600 x 321 cm
(Also available: laminated and mirror).
ATTRIBUTES AND QUALITY
> Base: float glass norm UNE-EN 572-2
> Highly resistant to stains and fingerprints.
> Easy to clean.
- Can be cut, bevelled, curved, drilled, tempered and laminated.
- Awarded the ISO 9001 (Quality control) and ISO 14001 (Environmental safety) Standard Certificates.
|
|
CriSamar®
Acid-etched engraved glass
Emotion-based design
CriSamar®. SEVASA's engraved glass in its ultimate expression. Known for its quality and the depth of the cut, it has a brightness and lightness that is impossible to obtain in any other transformation process.
MORE THAN JUST DESIGNS: CONCEPTS
Where textures and the sense of touch become significant, together with the transparences' visual effects. This is decorating with the senses, Designing based on Emotions.
CHARACTERISTICS
- Colors: extra clear, white, bronze, grey, green
- Thickness: 3, 4, 5, 6, 8, 10 and 12 mm.
- Size: Standard 225 x 321 cm.
(For other colors, please consult. Also available: laminated and mirror).
ATTRIBUTES AND QUALITY
- Base: float glass norm UNE-EN 572-2
- Highly resistant to stains and fingerprints.
- Easy to clean.
- Can be cut, bevelled, curved, drilled, tempered and laminated.
- Awarded the ISO 9001 (quality control) and ISO 14001 (Environmental safety) Quality Standard Certificates.
|
|
|
|
|
|
CriSamar® DESIGN: Amazing decorative glass designs
Big-sized patterns for outstanding décor.
CriSamar® DESIGN, with Petra, Palmira, Larsa and Nipur are the new generation of SEVASA acid-etched glasses that moves us to the 70´s with a line plenty of shades and freedom breezes.
CriSamar® DESIGN is the new proposal for trendy interior design and decoration. Touches of sophistication for a unique collection of great subtlety and beauty. A glossy and satined contrast playing with the geometric figures to the utmost.
APPLICATIONS
Ideal for decoration and interior architecture where design is a must: covering walls, furniture, doors, closets. Commercial installations, hotels, offices, Institutional buildings, outstanding houses.
CHARACTERISTICS
Base: float or mirror
Colors: Translucent: opticlear, clear, bronze, grey, blue and green. Mirror: opticlear, clear, bronze, grey, blue and green.
Thickness: 3, 4, 5, 6, 8, 10 and 12 mm ( 1/8” to ½” ), and laminated Size: standard 225x321 cm (88”x126”)
ATTRIBUTES AND QUALITY
Base: float glass norm UNE-EN 572-2
Easy to clean
Can be cut, beveled, curved, drilled, tempered and laminated.
Environmental Commitment
Quality ISO 9001 and Environmental Safety ISO 14001 certificates. Strict routine controls give SEVASA the seal of an eco-friendly and sustainable company
For further details, please contact us:
SEVASA (Headquarters): Ph. +34 93 8280333; info@sevasa.com
SEVASA NORTH AMERICA INC: Ph. 1 281.207.5477; northamerica@sevasa.com
www.sevasa.com
|
|
Core composed by 3 layers of glass 10 mm thk. and an
interposed layer of transparent or opaline pvb
Edge trim in PVC 1mm thk. transparent
Dimensions 600 x 600 x 30 mm
|
|
Karma is the exclusive glass covering tile created by Trend to enhance the colour depth through vivid light effects.
Inspired by Gothic cathedral windows, karma combines tradition with innovation thanks to a silver foil on the plate rear which gives the material a particularly deep effect. It’s a hand cut glass tile available in different sizes: from 2x2 cm until biggest size 48x96 cm, particularly suitable to cover bigger surfaces such as counter tops or walls where it is important to have not too many joints. The product colour range is very wide and the intentional lack of colour homogeneity makes Karma the best solution to create original decorative combinations: the total look of the surface will be pleasantly uneven.
Thanks to its resistance to chemical agents, to thermal shocks and since it doesn’t absorb water, Karma is suitable for any indoor and outdoor covering.
|
|
|
|
|
|
The process starts with the submission of drawings or finished artwork from the customer. These drawings are the basis for the production of photographic negatives, which are in turn exposed onto a pre-stressed woven mesh of nylon or polyester fibres (the screen). The stencilled screen is then positioned above the glass surface and the ceramic paint is forced through the openings in the fibre mesh giving the desired design. The printed glass plates are then dried with hot air prior to heat-treatment. Next, the ceramic paint is fired in a tempering furnace at a temperature above 600 °C. The paint fuses onto the surface of the glass to form a permanent and durable finish. The heating and cooling process simultaneously provides the enamelled glass with tempered safety glass properties.
-decorative.
-an endless range of possibilities in design, from simple geometric and figurative patterns to specific logos and artwork
-reduction of solar heat gain and visible light transmission
-reduction of glare in interior and exterior applications and increase of privacy for occupants
-many colours (RAL or Pantone) available, also in matt versions (sandblasted effect)
-always in tempered glass; resistance to mechanical and thermal shocks up to 5 times higher than normal float-glass
-DesignliteTM can be coated with high-performance solar control and thermal insulation coatings
-compatible with standard glazing systems
|
|
Today’s architecture is notable for its generous use of glass. Homes and offices, flooded with light, play an important role in our quality of life. GUARDIAN ExtraClear™ Plus float glass is manufactured using the latest advances in glassmaking technology.

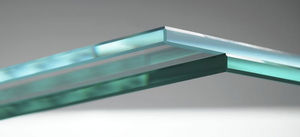

Guardian’s ExtraClear™ Plus combines technical benefits and aesthetical appearance and its characteristics are far beyond standard requirements of EN 572-2.
Well selected raw materials, in particular the low iron silica sand, are providing Guardian’s ExtraClear™ Plus its typical neutral appearance.
|
|
|
The Panelite ClearShadeTM insulating glass unit was developed for exterior glazing applications using a UVstabilized tubular honeycomb core with patented polymer technology that offers superior shading performance. In addition to the benefits of visual privacy and a Visible Light Transmittance of up to 50%, the ClearShadeTM IGU achieves a Solar Heat Gain Coefficient of 0.18 at midday, approximately 75% lower than that of other insulating glass units without the need for tinted, reflective or specialty glass. This dramatically reduces climate control requirements and results in significant energy savings over the life of a building.
|
|
Shopping Centre Darmstädter Hofzentrum, Heidelberg
|
|

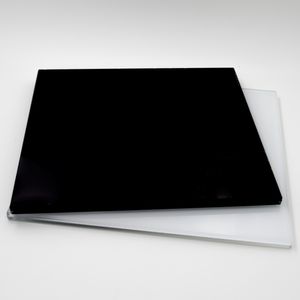

DecoCristal is a clear float glass covered on one side with high-quality smoothly applied paint (for interior use only).
Applications:
-sliding doors
-furniture
-covering for walls and interior partitions
-entry ways
-shelves etc.
-DecoCristal can be cut like a mirror with paint side down. Other processing like grinding, bevelling and drilling could also be performed.
-Suitable to be used with oxime silicone and double-sided tape (the same as a mirror).
-It cannot be tempered.
|
|
Annex to Finnish Parliament House, Helsinki, Finland
Conically curved laminated 12mm glass
Helin & Co Architects
|
|
|
Our designers have created a wide array of silk-screened patterns in just about any color in the spectrum. Our patterns are designed to complement any décor, from functional interior screening to bold aesthetic statements. And if you'd prefer to create a pattern of your own- just send us a sketch and we'll create it.
|
|
|
Montage™ offers architects and designers a unique variety of textured patterns from bold geometrics and modern randoms to subtle motifs, even natural configurations. Below is a small sampling of the textures we offer. Glass has never been so versatile.
|
|
Float glass varnished on one side.
A special surface treatment ensures optimum adherence of varnish to glass, and enhances the brilliance and intensity of the colour.
Product range:
Lacobel, opaque varnished glasses;
Lacomat, translucent varnished glasses;
Matelac, Satin painted glasses - opaque glazing
|
|
|
Glass? It sure is, but it's no ordinary glass, it's Montage™ combinations. By marrying one or more of our processes, you can truly create what's in your mind's eye. Imagine-cool patterns, wild colors, hot textures-even rice paper designs-combined for a look that transcends glass. Go ahead-express yourself.
|
|
|
Glass? It sure is, but it's no ordinary glass, it's Montage™ combinations. By marrying one or more of our processes, you can truly create what's in your mind's eye. Imagine-cool patterns, wild colors, hot textures-even rice paper designs-combined for a look that transcends glass. Go ahead-express yourself.
|
|
Médiathèque – Library, Raincy, France
Curved insulating glass of 8 mm float and laminated 16 mm glass
Ameller - Dubois architects
|
|
one side of which features a design created by rolling the hot glass ribbon between two metal rollers.
Only the Dalcobel and Imagin 33/33 designs (Imagin range) are printed on both sides of the glass.
The type of design and its structure determine the level of translucence of the glass.
Product range:
Imagin
Imagin wired
|
|
Flat glasses and patterned glasses with a built-in metal mesh.
All wired glasses are available in clear.
Some wired patterned glasses are also available in bronze and yellow.
Product range:
Wired glasses
|
|
Decorative glasses in which the design is printed onto one or both sides of a clear, bronze or yellow sheet of glass
More than 40 geometric, stylised, figurative, classical or exclusive designs, with or without metal mesh (see wired glasses)
Thicknesses: 3 to 19mm
Translucence is determined by the structure and design.
A translucent glazing can be toughened, laminated, sandblasted or assembled in double glazing depending on the design and thickness
|
|
|
|
