Studded draining sheet (vertical drainage)

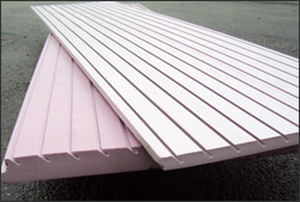

PINK-DRAIN™ board is a FOAMULAR® extruded polystyrene (XPS) product that incorporates the features of insulation, drainage, and protection board in a single, closed cell product for the exterior foundation wall. It’s easy to install without the need for special tools or equipment and the product’s compressive strength and long-term moisture resistance properties mean years of reliable performance on below grade foundation walls even under extremely harsh conditions. Like all FOAMULAR® XPS products, FOAMULAR® PFD is highly resistant to moisture and permits the product to retain its high R-value year after year even after exposure to water, soil, condensation, and freeze/thaw cycling. Some of the main characteristics of FOAMULAR® PINK-DRAIN™ XPS are:
Precision-cut channels drain water from vertical foundation walls while providing a continuous envelope of insulation.
Channel design prevents soil from clogging channels assuring long-term performance.
24" x 96" size covers more square footage faster and minimizes joints between boards.
Acts as protection course for waterproofing membrane.
Shiplap edges assure continuous insulation coverage
High R-value, exceptional moisture resistance and high compressive strength.
Minimum compression strength of 30 psi.
Available in thickness for R-10.
UL Classified foam core meets ASTM C578 Type IV specifications.
