Tripod turnstile TTS1

securitystainless steelfor access control

Overview

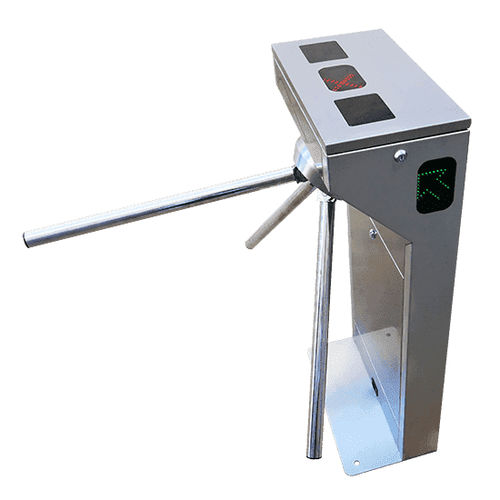

TTS1 is a stainless steel tripod turnstile designed for pedestrian access control. It prioritizes compact footprint, easy installation and competitive cost-performance. Bidirectional, it is suitable for RFID badge access, libraries, gyms, SMEs, theatres, trade shows and ticketing applications.

Functions and typical uses

• Control of entry and exit (bidirectional).
• Integration of RFID badge readers (MIFARE® / 125 kHz) and biometric sensors.
• Ticketing version with barcode/QR code readers (USB keyboard emulation).
• Typical applications: gyms, libraries, SMEs, ticketing, events.

Passage indicators
The TTS1 includes standard pictograms: green arrow for permitted passage and red cross for denied passage. The Evo version adds an animated central pictogram indicating allowed direction or refusal.

Electronics integration and readers

• Large top cover for access to mechanism and electronics; additional cover to free the interior of the cabinet foot.
• Adjustable universal mounts for integrating contactless readers (MIFARE®, 125 kHz).
• Optional top cover with smoked polycarbonate windows and recessed reader mounts (optimized read distance).
• Possible integration of two barcode readers in the ticketing version.

Options and safety

• Standard anti-panic mode with free rotation of the arms (automatic release in emergency).
• Optional drop-arm module: arm drops on power loss or external command (pushbutton, fire safety system) to fully clear the passage.
• Top cover on hinges in Evo version for easier maintenance and wiring.
• Large floor anchoring base with 6 holes for rigid fixing.
• Default arm length 520 mm; free options for 470 mm or 420 mm for constrained spaces.

Documents and maintenance
Technical documentation and dimension drawings are available (dimension diagram, user manual, product sheet). A maintenance video is available showing recommended servicing procedures for the turnstile.

Technical specifications

• Power supply: 24 ±3 V
• Power consumption: 30 W
• Throughput: 15 to 25 persons/min
• Arm length: 520 mm (470 or 420 mm on request)
• Height: 976 mm
• Length: 456 mm
• Chassis width: 295 mm
• Chassis: Stainless steel AISI 304 (1.2 mm thickness)
• Net weight: 34 kg
• Operating temperature: -20 to +70 °C
• Arm rotation: Bidirectional (entry and exit control)
• LED: green arrow allowed, red cross denied
• Anti-panic function: automatic by free rotation of the tripod
• Drop-arm module: optional (drops on power loss or external command)
• Compatible with access control systems: badge, biometric sensor or barcode reader
• Warranty: one year
