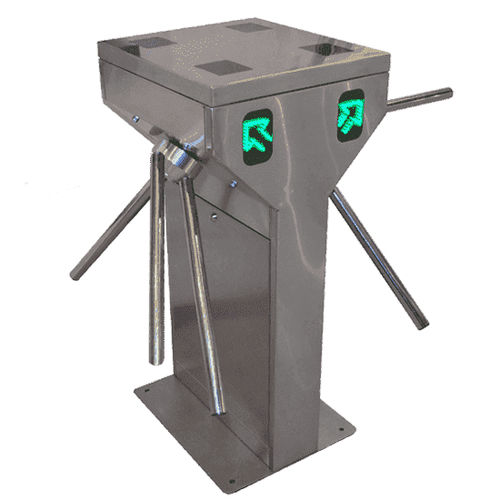

Tripod turnstile TTS11

stainless steelfor access controlfor sports facility

Overview
The TTS11 is a dual-pass tripod turnstile for access control featuring a central base and a tripod module on each side. It separates entry and exit while minimizing footprint and cost. Designed to simplify and streamline access control installations, it is particularly suited to sports centres, fitness clubs and similar facilities.

Key features

• Dual-flow operation with fully independent control of each tripod module.
• Configurable modes: controlled entry on both sides, controlled exit on both sides, mixed entry/exit control or free passages as required.
• Panic mode activatable via dry contact (push button or optional remote); automatic release of tripods on power loss to clear passages.
• Optional drop-arm module: top arm falls on power loss or external command to provide a fully unobstructed opening.
• Optional cover for integration of up to four RFID readers (smoked polycarbonate windows, universal mounts).
• LED indicators: green arrow for allowed passage, red cross for prohibited passage.

Panic mode and safety
Panic mode can be triggered by a dry contact on the main board (external command: push button, optional remote). On power failure the tripods release and rotate freely to enable quick evacuation. Optional drop-arm modules provide complete opening under emergency conditions.

RFID integration options
An optional hood allows installation of up to four RFID readers behind smoked polycarbonate windows with universal mounting, easing cabling and device placement.

Documents & downloads

• Dimensional drawing TTS11 (PDF)
• Product sheet TTS11 (PDF)
• User manual (PDF)

Technical specifications

• Model: TTS11
• Throughput per tripod: 15–25 persons/min
• Arm length: 520 mm standard (470 / 420 mm on request)
• Height: 1001 mm
• Turnstile length: 420 mm
• Chassis width: 456 mm
• Chassis material: AISI 304 stainless steel
• Net weight: 45 kg
• Operating temperature: -20 to +70 °C
• Rotation: Bidirectional per passage
• LED indication: green arrow / red cross
• Anti-panic: automatic (free rotation); panic activation via dry contact
• Drop-arm module: optional (falls on power loss or external command)
• Power supply: 24 ±3 V
• Power consumption: 30 W
• Warranty: 1 year (parts and labor, workshop return)
