Tripod turnstile TTS2GT

stainless steelfor access controlglass

Presentation

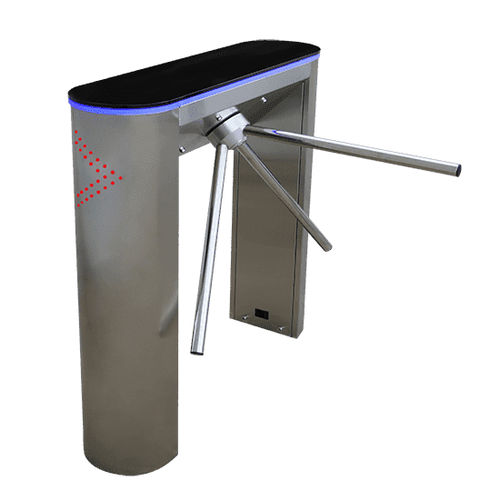

TTS2GT is a premium tripod turnstile from the A3M range designed for pedestrian access management in workplaces, sports facilities and leisure venues. It combines standard access control functionality with a refined look: black Plexiglas canopy, discreet blue LED trim and rounded feet with laser-cut pictograms.

Design and reliability
The TTS2GT uses proven mechanical and electronic components derived from the TTS1 and TTS2 tripods. Its rotary electromechanical mechanism has been field-proven since 2014, ensuring long-term reliability.

Target environments

• Gyms and fitness centers (member entry control)
• Company entrances (employee attendance, suppliers, visitors)
• Cultural and tourist sites (paid access coupled with QR/barcode ticketing)
• Reception areas where design and user comfort are priorities

Access system integration
The TTS2GT supports common access control technologies and accepts embedded or flush-mounted readers:

• RFID / badge readers (installed inside the turnstile, supports under the Plexiglas canopy)
• Biometric readers (fingerprint readers surface-mounted or flush with the canopy)
• Barcode / QR code readers (ticket or smartphone QR reading, flush-mounted at canopy level)

Recommended use
Solution suited to controlling pedestrian flows while offering a distinctive, modern appearance at reasonable cost. Optional features available, such as a drop-arm module (activated on power loss or by external command) for specific requirements.

Documents available
User manual, dimensional drawings and commercial documentation (PDF).

Technical specifications

• Throughput: 15–20 persons/min
• Arm length: 550 mm (470 or 420 mm on request)
• Height: 976 mm
• Length: 1010 mm
• Chassis width: 250 mm
• Chassis material: AISI 304 stainless steel
• Net weight: 32 kg
• Operating temperature: -20 to +70 °C
• Rotation: Bidirectional
• Pass indication: green arrow = passage allowed, red arrow = passage forbidden
• Anti-panic function: automatic by free rotation of the tripod
• Drop-arm module: optional, drops on power loss or external command (pushbutton, fire alarm input...)
• Power supply: 24 ±3 V
• Power consumption: 30 W
• Warranty: One year
