Stainless steel linear shower drain

durablelow-maintenanceeasy cleaning

Product overview

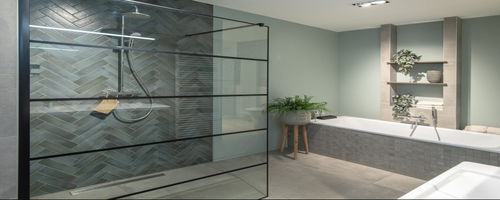

Linear ACO ShowerDrain C channels provide a contemporary alternative to traditional shower trays, enabling flush tiled finishes and level-access shower designs for residential, hospitality, leisure and healthcare projects.

Key Features and Benefits

• Stainless steel 304 construction: Pickle-passivated finish for enhanced corrosion resistance and hygienic surface maintenance.
• Design versatility: Multiple grating styles available to match different floor finishes and aesthetics.
• High flow rate: Up to 0.91 l/s (WS50 with 20 mm build up as per EN 1253-1), suitable for typical shower discharge rates.
• Barrier-free accessibility: Engineered to meet Part M building regulations for level-access shower installations.
• Efficient water management: Linear profile promotes rapid drainage and reduces standing water.

Applications

• Wetrooms and walk-in showers
• Hotels, spas and leisure facilities
• Healthcare, care homes and assisted-living environments
• Residential bathrooms and refurbishments

Featured downloads

• ACO ShowerDrain Brochure 2026
• Hotel & Leisure Brochure

Technical specifications

• Brand: ACO
• Model: ShowerDrain C
• Material: Stainless steel 304, pickle passivated
• Flow rate: Up to 0.91 l/s (WS50 with 20 mm build up as per EN 1253-1)
• Suitable for tiled floors and linear shower installations
• Compliance: Designed to meet Part M Building Regulations
• Available grating styles: Slot, Quadrato, Tile, Wave, etc.
• Applications: Wetrooms, hotels/spas, healthcare, residential
