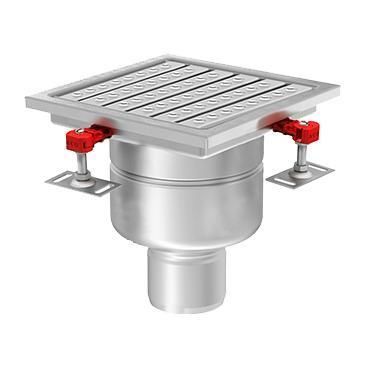

Stainless steel floor drain EG150

patiofor showerfor drainage

Product Description
ACO EG150 fixed height floor gully designed for point drainage in concrete, tiled and resin floors. Perforated gratings suitable for load class A15. Flow rate 1.2 l/s. Includes location flange. All components in grade 304 stainless steel.

Additional information
Fixed height gullies are specified where waterproofing is installed independently of the gully body. The gully is compatible with a range of grates selectable to meet required load classes. KIT parts are supplied unassembled; refer to the product datasheet for component details.

Downloads

• H3018-EG150-Gully-Datasheet.pdf

Caractéristiques / spécifications techniques

• Product code: H3018
• Model: EG150
• Type: Fixed height floor gully (point drainage)
• Nominal size: 150 x 150 mm
• Suitable for: Concrete, tiles, resin floors
• Grating: Perforated gratings (for load class A15)
• Load class: A15 (with appropriate grate)
• Flow rate: 1.2 l/s
• Location flange: Yes
• Material: Grade 304 stainless steel
• KIT parts: Supplied unassembled (refer to datasheet for component details)
• Notes: Can be combined with different grates to meet alternate load class requirements
