Stainless steel linear shower drain

high-resistancedurablelow-maintenance

Product Overview

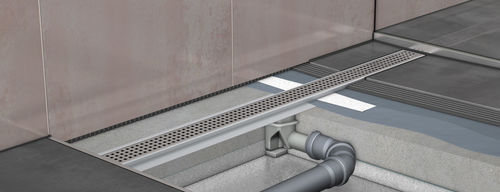

Stainless steel linear shower drainage channel with a shallow plastic gully designed for tiled floors and reduced build-up applications. Suited to residential, leisure, hospitality and healthcare projects where level-access and compact installation are required.

Key Features and Benefits

• Grade 304 stainless steel channel for corrosion-resistant performance.
• Shallow plastic gully screwed into the channel to eliminate risk of leakage and allow reduced installation depth.
• Permanently cast-on flange designed for secure compound seal connection to the tiled finish.
• Barrier-free accessibility: engineered to meet Part M Building Regulations for level-access shower designs.
• Linear configuration ensures rapid water evacuation and reduces standing water.
• Full pipe access for straightforward maintenance and cleaning.

Applications

• Wet rooms and walk-in showers
• Hotels, spas and leisure facilities
• Healthcare settings, care homes and assisted living environments
• High-end residential bathrooms and renovations requiring shallow build-up

Technical specifications

• Material: Grade 304 stainless steel
• Gully: shallow plastic gully, mechanically fixed into channel
• Minimum build-up / installation height: 77 mm
• Flange: permanently cast-on flange for compound seal connection
• Regulation compliance: designed to meet Part M Building Regulations (barrier-free / level access)
• Design: linear channel to ensure rapid drainage and prevent standing water
• Maintenance: full pipe access for cleaning
