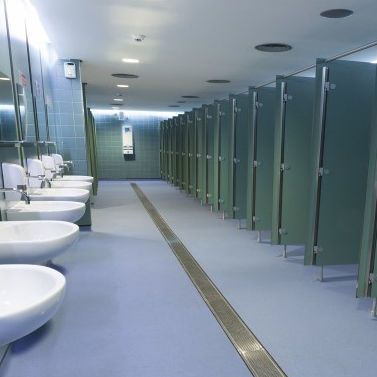

Drainage channel with grating MODULAR 125+

stainless steelpolymer gratefor airport

Overview
The ACO Modular 125+ is a stainless steel linear drainage channel system designed for flexible configuration, reliable corrosion resistance and fast on-site installation. It suits a wide spectrum of commercial and industrial wet-area applications.

Why choose Modular 125+?

• Modular design: Configure layouts with multiple channel lengths, depths and invert options.
• Available from stock: Standard configurations available within 3–5 days.
• Wide range of applications: Suitable for showers, washrooms, commercial kitchens, pools, landscape and public realm projects.
• Materials: Manufactured in Grade 304 stainless steel; Grade 316 available from stock for higher corrosion resistance.
• Efficient flow: V-bottom channel geometry optimizes drainage performance at low flow rates.
• Quick installation: Self‑leveling feet streamline alignment and reduce on-site labour.
• Sustainable content: Constructed from a minimum of 70% recycled materials.

Built for Demanding Environments

• Manufactured and certified to BS EN 1433.
• Load class options from A15 to C250 to suit pedestrian and vehicular zones.
• Slip‑resistant and lockable grating designs enhance safety and security.

Features

• Standard manufacture in Grade 304 stainless steel.
• Fully pickle passivated finish for improved corrosion resistance and hygiene.
• Range of compatible grating options and load classes A15 to C250.
• Certified to meet the Essential Requirements of BS EN 1433.
• Horizontal and vertical gully outlet options.
• Grade 316 stainless steel available from stock for aggressive or chlorinated environments.

Benefits

• Modular system simplifies design, procurement and assembly.
• V-bottom profile delivers effective performance at low flows.
• High corrosion resistance for long service life in wet environments.
• Self-leveling feet enable fast, accurate installation.
• High recycled content supports sustainable construction specifications.
• Extended range of constant-depth and sloping invert channels and accessories available.

Recommended Applications

• Airports and railway stations
• Pharmaceutical manufacturing and laboratories
• Sports & leisure centres
• Food & drink manufacturing
• Commercial kitchens
• Hospitals
• Landscaping and public realm
• Showers & washrooms
• Swimming pools (use Grade 316 stainless steel)
• Prisons

Technical specifications

• Model: Modular 125+
• Material: Grade 304 stainless steel (Grade 316 available from stock)
• Finish: Fully pickle passivated
• Recycled content: Minimum 70% recycled materials
• Certification: Compliant with BS EN 1433
• Load class range: A15 to C250
• Grating options: S/R Mesh, PL Mesh, Ladder, Perf, Plastic, Slotted, Composite, Quadrato, Intercept, Heel Safe
• Channel design: V-bottomed channels; constant depth and sloping invert options
• Gully options: Horizontal and vertical
• Installation features: Self-leveling feet for quick, accurate installation
• Availability: Standard configurations available off the shelf in 3–5 days
