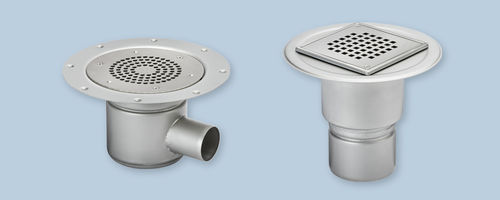

Stainless steel floor drain

for showergratedsquare

Product overview
ACO stainless steel shower gullies are designed for shower, wetroom and bathroom installations and are compatible with tiled and flexible sheet floor finishes. Gratings are available in electro-polished Grade 304 stainless steel, with barefoot-friendly designs and optional anti-slip variants. Lockable gratings can be specified for public and commercial areas to secure the drainage point.

Complete systems for tiled and flexible floors
Gully systems are offered for both tiled and vinyl/flexible floors, with multiple flow rate options to suit different installation requirements. The range includes solutions for suspended and solid floor constructions and offerings suitable for connection to below-ground drainage systems. A selection of grating styles supports diverse architectural and interior design intents.

Features

• Corrosion-resistant stainless steel construction (Grade 304)
• Suitable for use with flexible sheet flooring, tiles and vinyl
• Compatible foul air trap designs meeting BS EN 1253 requirements for a 50 mm water seal

Benefits

• Vertical outlet spigot options for suspended or solid floor constructions
• Vertical spigot slab-penetration gullies with 110 mm outlet for below-ground connections
• Lockable gratings for public and commercial shower areas to prevent tampering

Recommended applications

• Showers
• Wetrooms
• Commercial washrooms

Gully grating designs (examples)

• Quadrato gully grate
• Mondo gully grate
• Wellness gully grate
• Wave gully grating
• Perforated Circle grating
• Perforated Square grating
• Perforated slip resistant circle
• Perforated slip resistant square
• Arco gully grate
• Classic gully grate

Featured brochures

• ACO ShowerDrain Brochure 2026
• Hotel & Leisure Brochure

Technical features / specifications

• Material: Grade 304 stainless steel (electro-polished options available)
• Compatible floor types: flexible sheet flooring, tiles, vinyl
• Foul air trap compatibility: designs meeting BS EN 1253 for a 50 mm water seal
• Outlet options: vertical outlet spigot for suspended/solid floors; vertical spigot slab penetration with 110 mm outlet for below-ground connections
• Gratings: multiple design styles, barefoot-friendly, lockable; anti-slip gratings available
• Application suitability: domestic and commercial/public wetrooms and shower areas
• Flow rates: various options available to accommodate different requirements
