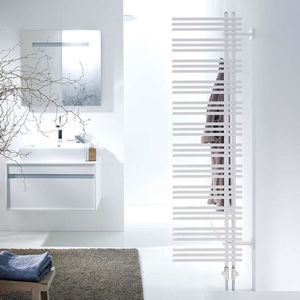

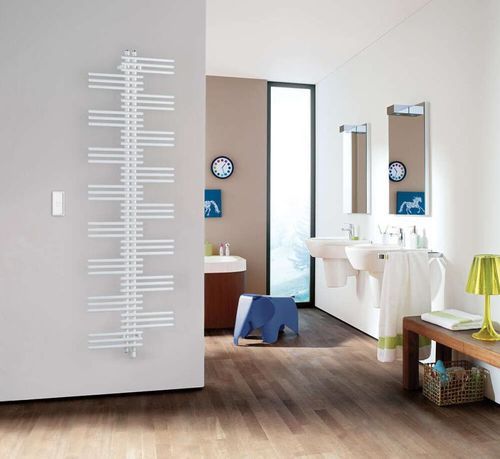

Electric towel radiator Manava

hot water500 w750 w

Tagline
An elegant, original design

Key benefits

• Comfort
  • Provides uniform heat to warm the bathroom and towels
  • Scheduled or on-demand control for daily comfort and energy savings
• Design
  • Original contemporary style
  • Customisable in 46 Acova colour options and two hammered finishes
  • Equipped with a discreet remote control with a clean design
• Durability
  • High-quality steel protected by an anti-corrosion treatment
  • Long-lasting powder coating, uniform across the surface
• Practicality
  • Multiple sizes to fit various spaces
  • Design and spacing that facilitate hanging towels
  • Simple, ergonomic remote for essential functions
  • Advanced settings and scheduling via the free Acova Connect app

Description

• Towel radiator made of steel.
• Round horizontal tubes Ø 20 mm, available in single or double thickness, welded to vertical collectors Ø 30 mm.
• Protected by an anti-corrosion cataphoresis bath treatment for increased resistance.
• Finish: epoxy/polyester powder coating. Standard color: Traffic White (RAL 9016).
• Optional: available in 46 Acova colour finishes. Offered for central heating and electric versions.
• Manufactured in the European Union.

Wall projection
122 mm

Controls

• Operated with an ergonomic remote control.
• Discrete, streamlined remote for easy handling.
• Access to essential functions (temperature setting, mode selection, on/off).
• Matrix LED display for optimal readability.
• Advanced parameters and weekly programming available via the Acova Connect app (Bluetooth®).

Available documents (examples)

• Product sheet
• Installation instructions
• User manual (IHD)
• Manava price guide
• Colour chart
• Environmental specifications

Reference table (examples)
Reference | Power (W) | Height (mm) | Width (mm) | Weight (Kg) | Price excl. VAT (€)
TMVSS040060EDAF | 400 | 982 | 600 | 12.80 | 760.00
TMVSS050050EDAF | 500 | 1414 | 500 | 17.10 | 820.00
TMVSS060060EDAF | 600 | 1414 | 600 | 19.00 | 830.00
TMVSS075050EDAF | 750 | 1846 | 500 | 22.70 | 940.00
TMVSS075060EDAF | 750 | 1846 | 600 | 25.20 | 950.00

Characteristics / technical specifications

• Material: steel
• Horizontal tubes: Ø 20 mm (single or double thickness)
• Vertical collectors: Ø 30 mm
• Anti-corrosion treatment: cataphoresis baths
• Finish: epoxy/polyester powder coating (RAL 9016 by default)
• Options: 46 Acova colour finishes + 2 hammered shades
• Wall projection: 122 mm
• Controls: remote control + matrix LED display + Acova Connect app (Bluetooth)
• Manufacturing: European Union
