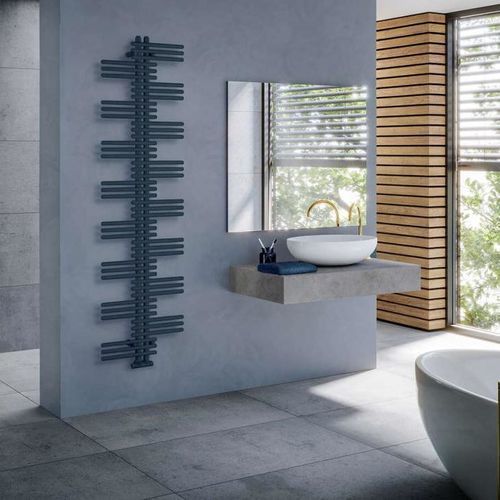

Electric towel radiator WMDSS series

hot water501 w...750 w751 w...1000 w

Overview
Elegant and original design

Key benefits

• Comfort: Provides uniform heat to warm the bathroom and towels
• Design: Original contemporary style
• Customisation: Available in 46 colours and two hammered finishes
• Durability: High-quality steel with cataphoretic anti-corrosion treatment for enhanced longevity
• Durability: Long-lasting paint, uniform over the entire radiator surface
• Practicality: Many sizes to fit all spaces
• Practicality: Available in double version for increased power without additional footprint
• Practicality: Multiple bars and a design that facilitates towel placement

Description

• Steel towel radiator
• Horizontal round tubes Ø 20 mm, single or double thickness, welded to vertical collectors Ø 30 mm
• Protection by cataphoresis anti-corrosion treatment for improved resistance
• Finish with epoxy/polyester powder coating. Base colour: Traffic White (RAL 9016)
• Optional: available in the 46 colours of the Acova palette
• Available in central heating and electric versions
• Made in the European Union

Projection from wall
139 mm

Number, type and diameter of connections

• Bottom feed with 50 mm center distance
• 2 outlets 1/2'' at the ends of each collector
• Supplied with H-shaped angled valve and manual head on the right

Available references
Reference | Central Heat Power Δ 50 (W) | Height (mm) | Width (mm) | Net weight (Kg) | Price excl. VAT (€)
WMDSS090060WZZZ | 556 | 908 | 600 | 17.20 | 690.00
WMDSS130050WZZZ | 717 | 1340 | 500 | 22.80 | 740.00
WMDSS130060WZZZ | 823 | 1340 | 600 | 25.80 | 750.00
WMDSS180050WZZZ | 926 | 1772 | 500 | 30.30 | 870.00
WMDSS180060WZZZ | 1063 | 1772 | 600 | 34.40 | 880.00

Characteristics / technical specifications

• Material: steel
• Horizontal round tubes Ø 20 mm; vertical collectors Ø 30 mm
• Anti-corrosion treatment by cataphoresis
• Coating: epoxy/polyester powder
• Base colour: Traffic White (RAL 9016); available in 46 colours and 2 hammered finishes as options
• Versions: central heating and electric
• Feed center distance: 50 mm (bottom)
• Connections: 2 outlets 1/2'' at the ends of each collector
• Projection from wall: 139 mm
• Made in the European Union
