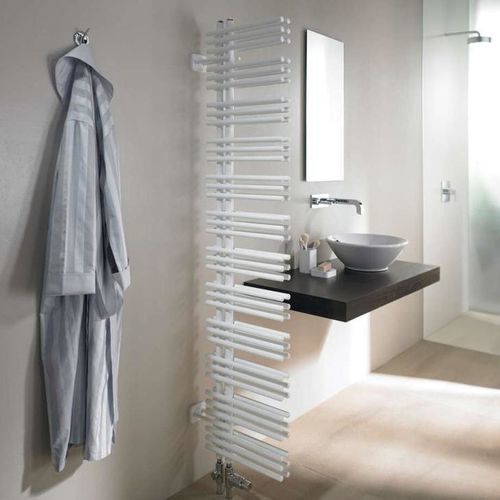

Electric towel radiator Manava

hot water501 w...750 w0...500 w

Presentation
Towel radiator for central heating. Elegant and practical design.

Key features

• Comfort: Provides homogeneous heat distribution to warm both the bathroom and towels
• Design: Elegant and timeless style
• Finish options: Customisable in 46 colours and two hammered finishes
• Durability: High-quality steel protected by an anticorrosion cataphoretic treatment for increased long-term resistance
• Durability: Long-lasting powder coating, uniform over the entire surface
• Practicality: Available in numerous sizes to fit all spaces
• Practicality: Also available in claustra or narrow versions to save space
• Practicality: Double version offers higher output without additional room footprint
• Practicality: Multiple spaces and design facilitate towel hanging

Description

• Steel towel radiator
• Round horizontal tubes Ø 20 mm, in single or double thickness, welded to vertical collectors Ø 30 mm
• Protected by an anticorrosion cataphoretic bath treatment for greater resistance
• Finish: epoxy/polyester powder coating. Base colour: Traffic White (RAL 9016)
• Optional: available in the 46 colours of the Acova chart
• Available for central heating and electric versions
• Made in the European Union

Projection from wall
139 mm

Number, type and diameter of openings

• Bottom feed with 50 mm centres
• 2 x 1/2’’ openings at the ends of each collector
• Flow/Return can be left or right
• Supplied with angled H valve and manual head on the right

Also available as

• Manava Asymétrique
• Manava Symétrique
• Manava Symétrique Double

Choose your model
Reference | Central Heating Power Δ 50 (W) | Height (mm) | Width (mm) | Net weight (Kg) | Price excl. VAT (€)
WMDSZ090040WZZZ | 435 | 872 | 378 | 13.30 | 560.00
WMDSZ090050WZZZ | 529 | 872 | 478 | 16.30 | 570.00
WMDSZ130040WZZZ | 628 | 1304 | 378 | 19.90 | 610.00
WMDSZ130050WZZZ | 763 | 1304 | 478 | 24.40 | 620.00
WMDSZ170040WZZZ | 825 | 1736 | 378 | 26.50 | 740.00
WMDSZ170050WZZZ | 1002 | 1736 | 478 | 32.60 | 750.00

Characteristics / technical specifications

• Type: Towel radiator for central heating
• Material: Steel
• Horizontal tubes: round Ø 20 mm
• Vertical collectors: Ø 30 mm
• Tube options: single or double thickness (double version for higher output)
• Treatment: anticorrosion cataphoretic bath
• Finish: epoxy/polyester powder coating, base colour Traffic White (RAL 9016); available in 46 colours + 2 hammered finishes
• Projection from wall: 139 mm
• Connection: bottom feed, 50 mm centres
• Openings: 2 x 1/2’’ at the ends of each collector
• Hydraulic configuration: Flow/Return left or right
• Supplied with: angled H valve and manual head on the right
• Manufacture: European Union
• Available sizes and outputs: see model table above
