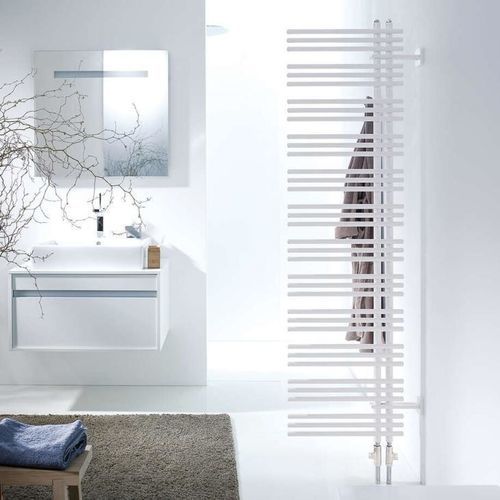

Electric towel radiator WMVSZ series

hot water501 w...750 w0...500 w

Presentation

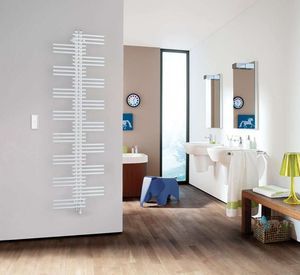

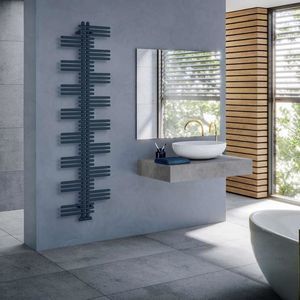

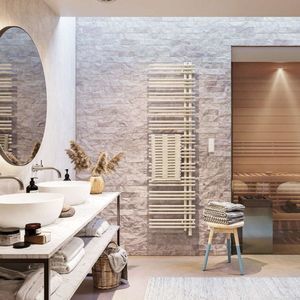

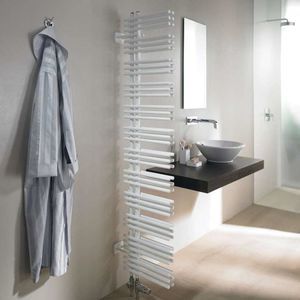

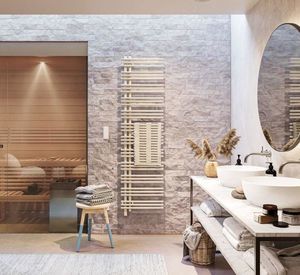

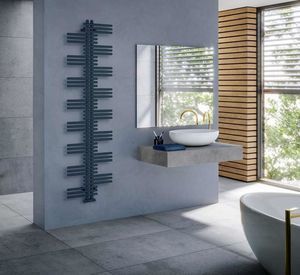

Heated towel radiator for central heating
A practical and elegant design

Key benefits

• Comfort: provides even heat distribution to warm the bathroom and towels
• Design: timeless style; customizable in 46 colours and two hammered finishes
• Durability: high-quality steel protected by anticorrosion treatment for enhanced long-term resistance; uniform, long-lasting powder coating
• Practicality: many sizes to fit any space; available in claustra or narrow versions to save space; available in double version for higher output without additional footprint; multiple bars and the design ease towel placement

Description

• Steel heated towel radiator
• Round horizontal tubes Ø 20 mm, single or double thickness, welded to vertical collectors Ø 30 mm
• Protection by anticorrosion cataphoresis dipping process for improved resistance
• Finish: epoxy/polyester powder coating. Base colour: Traffic White (RAL 9016)
• Available, as an option, in the 46 colours of the Acova palette
• Available for central heating and electric versions
• Made in the European Union

Wall projection
100 mm

Number, type and diameter of openings

• Bottom feed with 50 mm centre distance
• 2 fittings 1/2'' at the ends of each collector
• Flow/return can be on the left or right
• Supplied with H-shaped angle valve and manual head on the right

Reference table
Reference | Central heating power Δ50 (W) | Height (mm) | Width (mm) | Net weight (Kg) | Price excl. VAT (€)
WMVSZ090040WZZZ | 294 | 872 | 378 | 7.60 | 460.00
WMVSZ090050WZZZ | 351 | 872 | 478 | 9.10 | 470.00
WMVSZ130040WZZZ | 430 | 1304 | 378 | 11.30 | 490.00
WMVSZ130050WZZZ | 517 | 1304 | 478 | 13.60 | 500.00
WMVSZ170040WZZZ | 571 | 1736 | 378 | 15.10 | 590.00
WMVSZ170050WZZZ | 686 | 1736 | 478 | 18.10 | 600.00

Characteristics / technical specifications

• Type: heated towel radiator for central heating
• Material: steel
• Horizontal tubes: Ø 20 mm (single or double thickness)
• Vertical collectors: Ø 30 mm
• Anticorrosion treatment: cataphoresis dipping
• Finish: epoxy/polyester powder coating; base colour RAL 9016 (options: 46 colours + 2 hammered finishes)
• Versions: single, double, claustra, narrow; also available in electric version
• Wall projection: 100 mm
• Connection: bottom feed, 50 mm centre distance; 2 fittings 1/2'' at ends of each collector; flow/return left or right
• Supplied with H-shaped angle valve and manual head on the right
• Manufacture: European Union
