LED strip light ACTISWITCH

IP65polycarbonateanodized aluminum

Description
The ACTiSwitch is a tubular LED luminaire designed to provide grazing, intensive, or diffused beams. Perfectly suited for architectural and signage lighting, it features an interchangeable LED module that can be replaced without tools, ensuring effortless maintenance.

Key Features

• Compact & Robust: Engineered for durability and easy installation.
• Tool-free Maintenance: Simplified servicing via a quick-change LED module.
• 360° Light Control: Integrated system allows for full rotation of the luminous flux.
• Custom Mounting: Bespoke fixing solutions tailored to specific project requirements.

Typical Applications

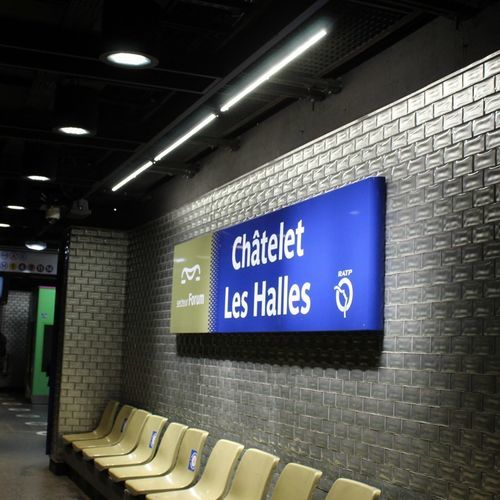

• Transportation Hubs: Railway stations, subways, airports, etc.

Materials & Finishes

• Diffuser: Opal polycarbonate
• Body: Black anodized aluminum
• End caps: PC + ABS

Installation & Accessories

• Mounting: Stainless steel clamps
• Adjustment: 360° beam orientation system

Options

• - Daisy-chain version: Through-wiring (2x0.75 mm²), custom lengths available upon request.

Color Temperatures

• 3000K – Warm White

Technical Specifications

• Ingress Protection : IP65
• Impact Resistance : IK08
• Electrical Class : Class III
• Dimensions : Ø47 mm; Lengths: 400 mm, 750 mm, 1200 mm, 1500 mm
• Weight : 0.400 kg (for 400 mm version)
• Luminous Flux : 4100 lm/m
• Power Consumption : 40 W/m
• Power Supply : Constant current
• Dimming : Phase-cut control
• Beam Angle : 360° adjustable orientation
• CRI >84
• Lifespan : 50,000 hours (L70B10)
