Hanging light fixture ACTITUBE360S

LEDtubularIP65

Overview
ACTiTube360S is a 360° emitting tubular pendant luminaire with a minimalist design. Designed for large volumes, it delivers harmonious, uniform, linear illumination.
With a 50 mm diameter, it is available in four lengths and can be suspended vertically or horizontally.

Typical applications

• Commercial: architectural lighting for large volumes
• Commercial: work and communal areas, lobbies and circulation spaces

Materials & finishes

• Opal polycarbonate tube
• Aluminium end caps

Installation & accessories

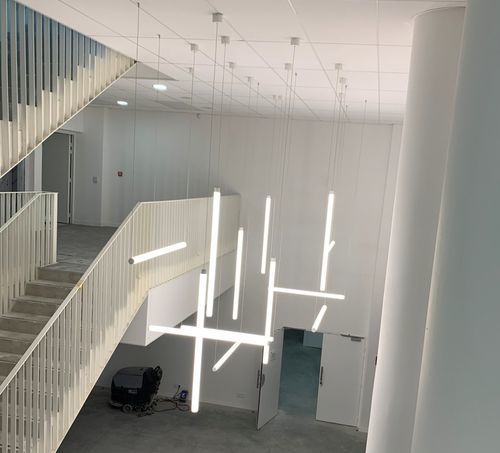

• Vertical suspension with mounting box and cable
• End caps and mounting box painted white (standard) or black (option)

Options

• IP65 protection

Available colour temperatures

• 3000K - warm white
• 4000K - neutral white

Technical specifications

• Commercial reference: ACTiTube360S
• Ingress protection: IP40
• Mechanical impact resistance: IK08
• Electrical class: Class II
• Dimensions: Ø50 mm, lengths available L: 64, 94, 124, 154 cm
• Luminous flux: 3100 lm/m
• Power consumption: 23 W/m
• Supply: 230V ±10%, 50/60 Hz ON/OFF
• Dimming: DALI or Casambi®
• Colour Rendering Index (CRI): >90
• Lifetime: 50000 H (L90B10)
• Certifications: CE marked
