Surface mounted lighting profile ACTITUBE24

LEDpolycarbonatewaterproof

Overview

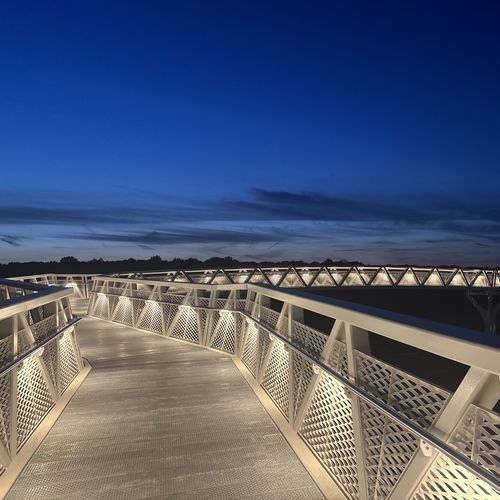

The ACTiTube24 is a tubular LED luminaire specifically engineered for seamless, invisible integration into handrails (both round and square profiles). Combining minimalist aesthetics with high performance, it stands out as the ideal solution for architectural lighting in corridors, stairways, and public spaces.Thanks to its pass-through wiring, it enables the creation of continuous, uniform, and perfectly secure light lines.

Key Features for Your Projects

• Time-Saving & Reliable: Direct 230V connection with no external driver required. Fewer hidden components within the structure means an installation that is twice as fast and a drastically reduced risk of failure.
• XXL Modularity: Continuous daisy-chaining via pass-through cabling up to 200 meters long on a single line.
• User Safety: Ultra-low touch temperature (below 40°C), fully compliant with public building safety regulations.
• Extreme Durability: Made of UV-stabilized polycarbonate with aluminum end caps, offering maximum resistance to impacts (IK10) and vandalism.
• Smart Maintenance: The luminaires remain fully removable, facilitating lighting replacement or upgrades without damaging the handrail.

Technical Specifications

• Dimensions : Section: Ø 24 mm ; Length: 500 mm
• Luminous Performance : Max flux: 1105 lm/m ; CRI > 80
• Electrical Power : 6 W/m or 13 W/m ; Power Factor: 0.98
• Direct Power Supply : 230 VAC ±10%
• Dimming : Phase-cut (Triac)
• Color Temperatures (CCT) : 2700K (Warm) ; 3000K (Warm) ; 4000K (Neutral)
• Diffuser Finishes : Opal or clear polycarbonate (40° intensive version)
• Protection Ratings : IK10 (Impact resistance) ; Class II ; IP54 (Standard) or IP67 (Optional)
• Lifespan : 50,000 hours (L70B10)
• Mounting Method : Via rivets or screws
• Included/Available Accessories : Quick-connect power cables, daisy-chain cables
• Technical Recommendation : Use of a surge protection device (SPD) is mandatory to protect the line
