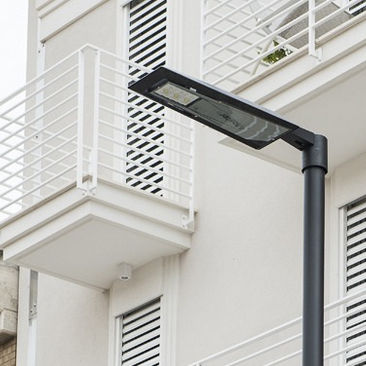

Urban lamp post MASTER 3

contemporarystainless steelpolyurethane

APPLICATION Urban LED lighting luminaire. MECHANICAL CHARACTERISTICS Fixing, heat-sink, lower frame and upper canopy: die cast aluminium UNI EN1706 powder painted. Gasket: Polyurethane seal. Closure hook: Extruded aluminium with stainless steel spring. Removable metal gear plate. Cable gland membrane IP66 – M20 IP68 optional Fixing: bracket or post-top ø60mm, ø32mm, ø42mm, ø 48mm, ø76mm for option. Captive screws in stainless steel IP66 protection degree. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 525/700mA. Power factor: >0.9 (at full load). Optical Unit lifetime: >100.000hr L90B10 >100.000hr L90, TM-21 Available dimming options: F: Fixed power not dimmable. DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile. DB: Custom DA profile. FLC: Constant light flux. WL: Wireless single point communication system. DALI: Digital dimming interface DALI. NEMA: Socket 7 pin (ANSI C136.41).
