APPLICATION

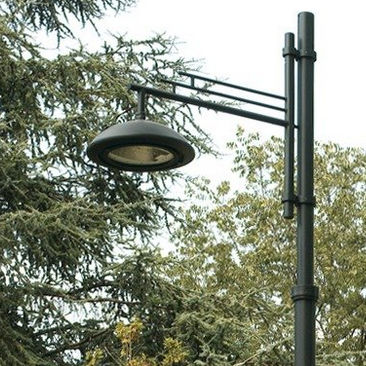

LED luminaire for urban lighting.
MECHANICAL CHARACTERISTICS
Support frame in die cast aluminum alloy UNI EN1706.
Top cover in turned aluminum UNI EN485 and steel.
Graphite colour Cod. 01.
EPDM seal.
Screen in flat tempered glass 4mm thickness high transparency.
Optical unit in aluminium finish surface 99.95% with vacuum-sealed deposition. Aluminium Class A+ (DIN EN 16268).
Removable metal gear plate.
Integrated cable clamp.
Fixing system in turned aluminium.
Stainless steel lock.
IP66 IK08 protection degree.
ELECTRICAL CHARACTERISTICS
Insulation class: I, II.
Power supply: 220-240V - 50/60Hz.
LED current: 525/700mA.
Power factor: > 0.9 (at full load).
Connection: connector for cables featured by a maximum cross section of 2.5mm2.
Overvoltage protection up to 10kV in common and differential mode.
Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection.
Optical unit lifetime:
≥ 100.000hr L90B10
≥ 100.000hr L90, TM-21.
