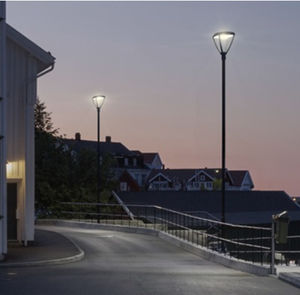

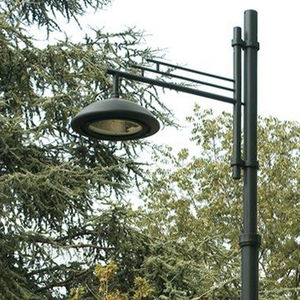

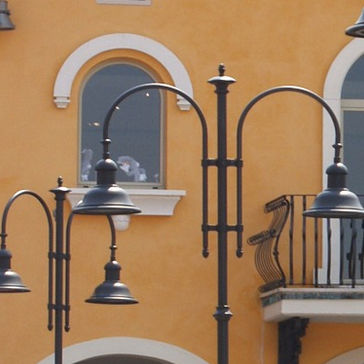

Urban lamp post REVELAMPE

traditionalcast aluminumstainless steel

APPLICATION LED luminaire for urban lighting. MECHANICAL CHARACTERISTICS Support frame in die cast aluminum alloy UNI EN 1706. Hemispherical top cover in turned aluminum UNI EN 485. Graphite colour Cod. 01. EPDM seal. High transparency closure screen in flat tempered glass (4mm thickness) on each LED module. Optical unit in high efficiency metallised polycarbonate. Removable metal gear plate. Integrated cable clamp. Fixing system in die cast aluminum UNI EN 1706. Stainless steel closure screws. IP66 IK08 protection degree. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: 525/700mA. Power factor: > 0.9 (at full load). Connection: connector for cables featured by a maximum cross section of 2.5mm2. Overvoltage protection up to 10kV in common and differential mode. Integrated SPD 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection. Optical unit lifetime: ≥ 100.000hr L90B10 ≥ 100.000hr L90, TM-21. Available dimming options: F: Fixed power not dimmable. DA: Automatic dimming (virtual midnight) with default profile. DAC: Custom DA profile. FLC: Constant light flux. DALI: Digital dimming interface DALI.
