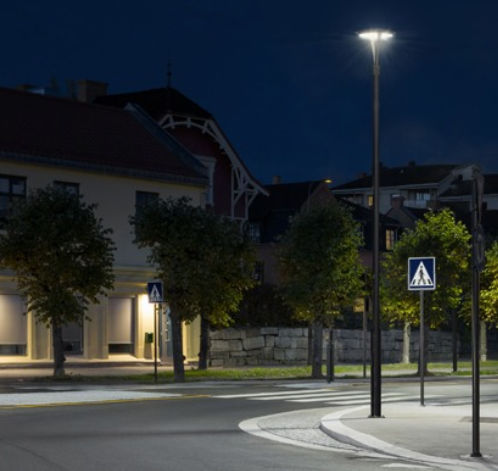

Urban lamp post ARYA

contemporarycast aluminumwith tempered glass diffuser

TP: post top installation ø60-ø76mm Optical unit 99.85% aluminium with a surface finish in 99.95% with vacuum-sealed deposition. Alluminium grade class A+ (DIN EN 16268). Removable optical and gear tray compartment. Opening wiring harness and optical compartment with commonly used tools without sealed parts with adhesives. Weight and dimensions: 470x520x68 | Max 7 Kg Powder coating graphite cod. 01 Corrosion protection: 1500hr saline fog ISO 9227. ELECTRICAL CHARACTERISTICS Insulation class: I, II. Power supply: 220-240V - 50/60Hz. LED current: Hyper Comfort 250 / 350mA Pixled 400 / 500mA Power factor: > 0.9 (at full load, F, DA, DAC). Overvoltage protection up to 10kV in common and differential mode. SPD (Optional) 10kV-10kA, type II, provided with LED signalling and thermal fuse for end-of-life load disconnection. LED source lifetime: ≥100.000hr L90B10 Tq=25°C, 500mA ≥100.000hr L90, TM21 Tq=25°C, 500mA
