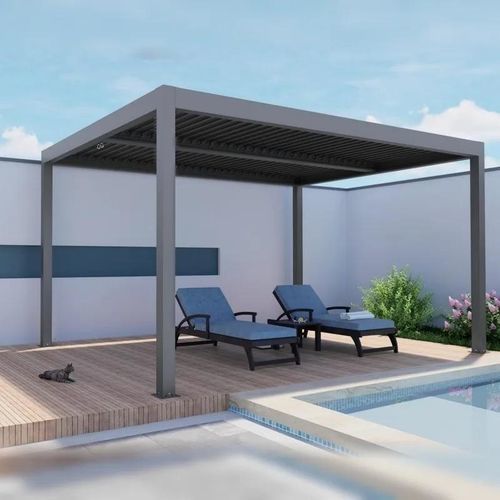

Wall-mounted pergola AL-100-A-KD

self-supportingaluminumwith mobile slats

Product overview
The AL-100-A-KD is an entry-level aluminum louvered pergola designed for residential and light-commercial outdoor shading projects. It combines clean architectural lines with practical control of sunlight and ventilation, available in wall-adjacent or freestanding configurations and standard sizes 3 x 3 m and 3 x 4 m.

Key features

• Aluminum entry-level solution for dealers, architects and residential projects
• Manual or motorized louver roof with independent louver operation
• Separate louvers for flexible control of sunlight and airflow
• Optional zip screen (manual or motorized) for side shading and privacy
• Optional LED strip lighting (warm white / white / RGB) for evening use
• Available as wall-adjacent or freestanding configuration

Technical data (table)
Model: AL-100-A-KD
Category: Aluminum pergola
Post: 100 x 100 mm
Louver blade: 123 x 19.85 mm
Side beam: 150 x 33.5 mm
Middle beam: 144 x 120 mm
Water gutter: 57.8 x 29.5 mm
Standard / available sizes: 3 x 3 x 2.4 m / 3 x 4 x 2.4 m
Roof type / louver roof: Manual or motorized operation
Zip screen: Manual or motorized option
LED strips: Warm white / white / RGB option

Applications / Recommended uses

• Garden pergola — entry aluminum shade for garden patios and residential outdoor spaces
• Backyard / patio — manual or motorized pergola for backyard and patio shading
• Deck pergola — lightweight aluminum solution for deck-side outdoor living
• Outdoor pergola — general residential outdoor shade projects

Configuration & options

• Manual roof package for cost-sensitive projects
• Motorized roof upgrade for enhanced comfort and control
• Two standard sizes (3 x 3 m and 3 x 4 m) covering common residential layouts
• Zip screen option for side privacy and light/weather protection
• LED strip option (warm white / white / RGB) to adapt the pergola for evening use
• Accessories: sliding shutters, adjustable louver walls, fixed slat walls, glass sliding or folding doors

Installation
Supports wall-adjacent (attached) or freestanding (four-post) layouts; engineered for straightforward on-site assembly and integration with building facades.

Technical specifications

• Model: AL-100-A-KD
• Positioning: Entry aluminum model
• Posts: 100 x 100 mm
• Louver blades: 123 x 19.85 mm
• Side beam: 150 x 33.5 mm
• Middle beam: 144 x 120 mm
• Water gutter dimensions: 57.8 x 29.5 mm
• Standard sizes: 3 x 3 x 2.4 m and 3 x 4 x 2.4 m
• Roof operation: Manual or motorized louver roof; independent louver operation
• Zip screen: Manual or motorized option
• LED lighting: Warm white / white / RGB options
• Typical uses: garden, patio, deck, backyard and residential outdoor shade
