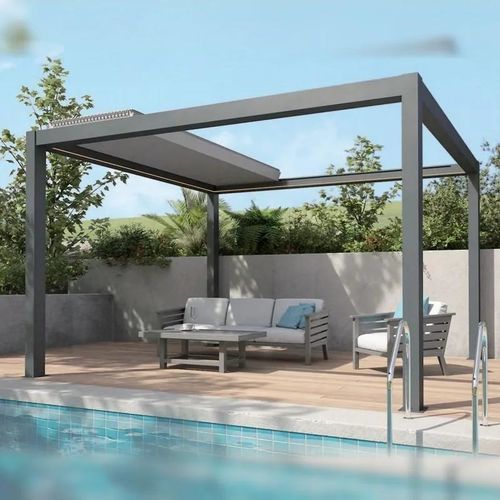

Wall-mounted pergola AL-120-C-KD

self-supportingaluminumwith mobile slats

Short description
A motorized aluminum pergola for residential garden, patio and backyard projects requiring a wide open-top view. The AL-120-C-KD features 120 x 120 mm posts, 165 x 35 mm louver blades, a foldable open-view roof layout, synchronous belt drive with no on-site belt adjustment and standard sizes up to 4 x 4 m.

Key specifications

• Model: AL-120-C-KD
• Series: Exquisite Beauty Series
• Posts: 120 x 120 mm
• Louver blade: 165 x 35 mm
• Side beam: 150 x 40 mm
• Water gutter: 98.2 x 45.6 mm
• Standard sizes: 3 x 3 m / 3 x 4 m / 4 x 4 m
• Roof type: Motorized foldable (open-view) louver roof
• Drive: Synchronous belt drive (no on-site belt adjustment)

Technical data (product data)
Model: AL-120-C-KD
Category: Aluminum Pergola
Roof Type: Motorized
Standard Sizes: 3 x 3 m / 3 x 4 m / 4 x 4 m (example heights: 2.5 m)
Design: Foldable open-view roof
Post: 120 x 120 mm
Louver Blade: 165 x 35 mm
Side Beam: 150 x 40 mm
Water Gutter: 98.2 x 45.6 mm
Available Sizes (example): 3 x 3 x 2.5 m / 3 x 4 x 2.5 m / 4 x 4 x 2.5 m
Louver Roof: Motorized operation
Drive System: Synchronous belt drive
Zip Screen: Manual or motorized option
LED Strips: Warm white / white / RGB option

Foldable roof positioning

• Open View — Collapsible louvers provide a wider top/sky view when opened.
• Drive — Synchronous belt transmission supports smooth and stable motorized movement.
• Install — No on-site belt adjustment required, simplifying assembly and handover.

Selling points

• Wider Top View — Foldable louvers open the roof more fully for increased openness.
• Stable Drive System — Synchronous belt drive ensures smooth motorized operation.
• No Belt Adjustment — Eliminates the need for on-site synchronous belt tuning.
• Stable Frame Connection — Side beam and column connection designed for steady aluminum framing.
• Larger Residential Coverage — Standard sizes cover common patio, garden and backyard projects.

Configuration & options

• Motorized Roof Package — electric roof control.
• Foldable Opening — collapsible roof for wider open-top effect than rotating louvers.
• Synchronous Belt Drive — stable belt transmission for smoother operation.
• No-Adjustment Install — predictable installation without belt tuning.
• Zip Screen Option — manual or motorized zip screens for privacy and side shade.
• LED Strip Option — warm white, white or RGB lighting.

Installation

• Wall-Adjacent Patio — integrates beside homes, terraces and patio edges.
• Freestanding Garden Pergola — four-post placement for gardens, backyards, decks and independent outdoor zones.

Colors & Add-Ons

• Color swatches: Light Neutral; Graphite Grey; Dark Charcoal.
• Accessories: LED louver lighting (warm white/white/RGB); Zip blind (manual or motorized); Sliding shutter; Adjustable louver wall; Fixed slat wall; Glass sliding door; Folding glass door.

Model comparison (summary)
Model | Position | Roof | Sizes | Best for
AL-120-C-KD | Foldable motorized aluminum model | Motorized | 3 x 3 m, 3 x 4 m, 4 x 4 m | Projects needing wider top view and stable belt drive
AL-100-A-KD | Entry-level aluminum model | Manual or motorized | 3 x 3 m, 3 x 4 m | Cost-sensitive residential projects
AL-120-A-KD | Mid-level aluminum model | Manual or motorized | 3 x 3 m, 3 x 4 m | Stronger aluminum section and snow-load requirements
AL-120-B-KD | Hidden-mechanism aluminum model | Manual or motorized | 3 x 3 m, 3 x 4 m | Projects requiring concealed linkages and larger blades
ST-100-C-KD | Mainstream steel model | Manual | 3 x 3 m, 3 x 4 m, 3 x 6 m | Steel pergola applications with cost control
AL-135-A-KD | Ultra-luxury aluminum model | Manual or motorized | Project-based | High-end residential and premium outdoor rooms


Factory & delivery (process overview)

• Step 01 — Confirm roof movement requirement (foldable opening, motorized control, target use).
• Step 02 — Specification review (post, louver, side beam, gutter, roof operation, screens, LED, packing).
• Step 03 — Option grouping (motorized roof, screens, LED lighting, color options grouped per channel).
• Step 04 — B2B handover (export-ready packaging and order communication for project buyers).

Applications

• Aluminum Pergola — aluminum pergola for residential and project shade programs.
• Louvered Pergola — foldable adjustable louver roof for shade, airflow and open-top comfort.
• Motorized Pergola — electric roof operation with synchronous belt drive for stable movement.
• Garden / Backyard / Patio / Deck applications — outdoor living and shade solutions.

FAQ (selected)

• What is the main position of the AL-120-C-KD? — Motorized aluminum pergola with foldable louvers, wider top view and synchronous belt drive.
• Is the louver roof manual or motorized? — The louver roof is motorized; zip screens can be manual or motorized.
• What sizes are available? — Standard sizes include 3 x 3 x 2.5 m, 3 x 4 x 2.5 m and 4 x 4 x 2.5 m.
• What information is required for a quote? — Target size, quantity, screen option, LED requirement, destination market and any OEM packaging requests.

Technical specifications

• Model: AL-120-C-KD
• Category: Aluminum Pergola
• Post: 120 x 120 mm
• Louver blade: 165 x 35 mm
• Side beam: 150 x 40 mm
• Water gutter: 98.2 x 45.6 mm
• Drive system: Synchronous belt drive (motorized)
• Roof design: Foldable open-view roof (collapsible louvers)
• Standard sizes (examples): 3 x 3 x 2.5 m; 3 x 4 x 2.5 m; 4 x 4 x 2.5 m
• Zip screen: Manual or motorized option
• LED strips: Warm white / white / RGB option
• Installation modes: Wall-adjacent or freestanding four-post layout
