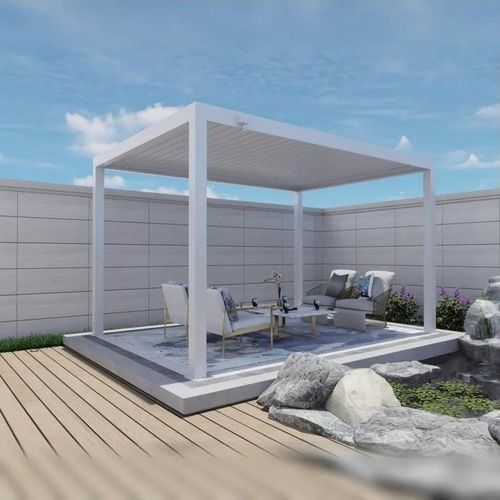

Wall-mounted pergola AL-120-A-KD

self-supportingaluminumwith mobile slats

Overview A mid-level aluminum louvered pergola engineered for residential outdoor shading on gardens, patios and decks. The AL-120-A-KD features a reinforced mid-range aluminum frame, adjustable louver roof options and standard residential sizes. Rated for 100 kg/m² snow load and designed for a typical 2–3 hour on-site installation.

Key features

• Product position: mid-level aluminum pergola between entry and premium ranges
• Post profile: 120 x 120 mm for a substantial frame appearance
• Louver blades: 158.8 x 34.7 mm providing controlled shading and airflow
• Roof operation: available manual or motorized louver roof
• Standard sizes: 3 x 3 x 2.5 m and 3 x 4 x 2.5 m (common residential formats)
• Snow-load capacity: 100 kg/m²
• On-site installation time: approximately 2–3 hours

Build & materials

• Side beam: 150 x 46.5 mm
• Water gutter: 57.8 x 29.5 mm
• High-grade aluminum construction engineered for outdoor residential use

Options & add-ons

• Zip screen: manual or motorized side screen for shade and privacy
• LED strips: warm white / white / RGB options for integrated lighting
• Accessories: sliding shutters, adjustable louver walls, fixed slat walls, glass sliding or folding doors

Installation & configurations

• Mounting options: wall-adjacent patio cover or freestanding four-post pergola
• Package options: Manual Roof Package or Motorized Upgrade
• Recommended use: garden, backyard, patio, deck and residential outdoor living zones

Technical data (table)Model: AL-120-A-KD
Post: 120 x 120 mm
Louver Blade: 158.8 x 34.7 mm
Side Beam: 150 x 46.5 mm
Water Gutter: 57.8 x 29.5 mm
Available Sizes: 3 x 3 x 2.5 m / 3 x 4 x 2.5 m
Roof Type: Manual or motorized operation
Zip Screen: Manual or motorized option
LED Strips: Warm white / white / RGB option
Snow Load: 100 kg/m²
Product Position: Mid-level aluminum pergola

Applications

• Garden pergola, backyard pergola, patio pergola, deck pergola, front porch shade
• Residential outdoor living, poolside shade, outdoor kitchen and BBQ zones (with appropriate accessories)

Technical characteristics / specifications

• Model: AL-120-A-KD
• Product position: Mid-level aluminum pergola
• Post profile: 120 x 120 mm
• Louver blades: 158.8 x 34.7 mm
• Side beam: 150 x 46.5 mm
• Water gutter: 57.8 x 29.5 mm
• Standard sizes: 3 x 3 x 2.5 m, 3 x 4 x 2.5 m
• Roof type: Manual or motorized
• Zip screen options: Manual or motorized
• Lighting options: LED strips warm white / white / RGB
• Snow load: 100 kg/m²
• Estimated installation time: 2-3 hours
