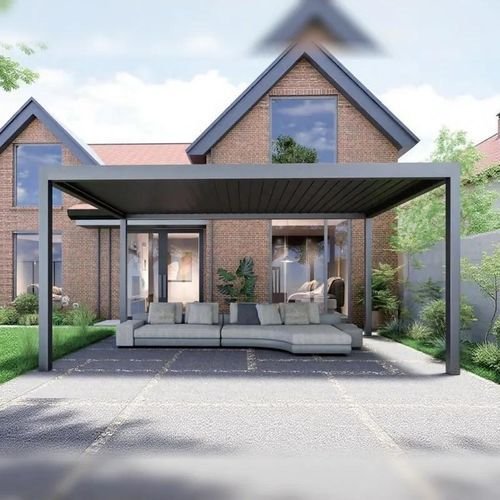

Wall-mounted pergola AL-135-A-KD

self-supportingaluminumwith mobile slats

Short description
An ultra-luxury motorized aluminum pergola designed for premium villas, courtyards, hospitality terraces and high-end outdoor rooms. Features oversized louver blades, heavy side beams, wide-span sizes up to 4 x 6 m, water-electric separation, waterproof louver grooves and integrated lighting options for both louvers and beams.

Key specifications (ticker)
AL-135-A-KD Aluminum Pergola · Ultra-Luxury Series · Post 135 x 135 mm · Louver Blade 223.8 x 50 mm · Side Beam 250 x 75 mm · Water Gutter 67.2 x 43 mm · Sizes up to 4 x 6 m · Motorized Roof · Water and Electricity Separated · Louver and Beam Lighting Options

Product data
Category: Luxury Aluminum Pergola
Roof Type: Motorized
Standard Sizes: 3 x 5m / 3 x 6m / 4 x 4m / 4 x 5m / 4 x 6m
Design: Ultra-Wide Premium

Technical summary / spec table
Model: AL-135-A-KD
Post: 135 x 135 mm
Louver Blade: 223.8 x 50 mm
Side Beam: 250 x 75 mm
Water Gutter: 67.2 x 43 mm
Available Sizes: 3 x 5 x 2.5/2.7 m · 3 x 6 x 2.5/2.7 m · 4 x 4 x 2.5/2.7 m · 4 x 5 x 2.5/2.7 m · 4 x 6 x 2.5/2.7 m
Louver Roof: Motorized operation
Zip Screen: Manual or motorized option
LED Strips: Warm white / white / RGB option
Lighting Position: Louver and beam lighting options

Selling points

• Oversized Louver Blade — large 223.8 x 50 mm louvers for a heavier, premium roof appearance.
• Ultra-Wide Coverage — wide-span sizes (up to 4 x 6 m) for villas, courtyards and commercial terraces.
• Water-Electric Separation — separated water and electric routing for improved safety in motorized packages.
• Waterproof Groove — waterproof louver grooves to enhance drainage performance.
• Beam and Louver Lighting — integrated lighting options for louvers and beams, including warm white, white and RGB.

Configuration options

• Motorized Roof Package — electric louver operation for premium outdoor living spaces.
• Ultra-Wide Structure — standard size range from 3 x 5 m to 4 x 6 m with selectable heights (2.5 m or 2.7 m).
• Zip Screen Option — manual or motorized zip screens for privacy and side shade.
• Waterproof Louver Groove — improved drainage and protection for outdoor-room experience.
• Lighting Options — louver and beam lighting can be specified (warm white / white / RGB).

Design details
The model emphasizes a larger, more architectural visual scale: oversized louvers, 250 x 75 mm side beams and waterproof groove design, combined with separated water-electric routing to support safer motorized configurations.

Installation directions

• Wall-Adjacent Terrace — suitable as a terrace cover adjacent to buildings for villa and hotel terraces.
• Freestanding Villa Pergola — four-post placement supports courtyards, poolside decks, garden lounges and independent outdoor rooms.

Colors & add-ons
Available color swatches include Light Neutral, Graphite Grey and Dark Charcoal. Add-ons and accessories: LED louver lighting, Zip blind (manual or motorized), Sliding shutter, Adjustable louver wall, Fixed slat wall, Glass sliding door, Folding glass door.

Accessories (visual & options)

• LED Louver — integrated louver lighting: warm white / white / RGB.
• Zip Blind — manual or motorized zip blinds for side shade and privacy.
• Sliding Shutter — architectural side screen option.
• Adjustable Louver Wall — side louvers for privacy and airflow control.
• Fixed Slat Wall — side screen for privacy and architectural finish.
• Glass Sliding Door / Folding Glass Door — glass panels to enclose the pergola for brighter outdoor rooms.

Model comparison (high-level)
A short comparison: AL-135-A-KD — ultra-luxury aluminum model · Motorized roof · Sizes 3x5m, 3x6m, 4x4m, 4x5m, 4x6m · Best for premium outdoor rooms needing wide-span size, large louvers and lighting upgrades. Related models vary down the range for different size/feature/price positions.

Factory & delivery overview
From ultra-luxury specification to export-ready delivery, the model is reviewed across wide-span size, motorized roof operation, water-electric separation, drainage grooves, lighting positions, screen options and packing details prior to production and shipment.

Applications
Recommended uses: premium residential and commercial shade markets including villas, courtyards, patios, hospitality terraces, poolside shade and commercial outdoor rooms.

FAQ (product-focused)

• Position: Ultra-luxury aluminum pergola with wide-span sizes, oversized louvers, motorized roof operation and premium lighting options.
• Roof operation: Louver roof is motorized. Zip screens available as manual or motorized.
• Available sizes: 3 x 5 m, 3 x 6 m, 4 x 4 m, 4 x 5 m, 4 x 6 m with 2.5 m or 2.7 m height options.
• Safety: Water and electricity separation improves safety for motorized outdoor-room configurations.

Technical specifications

• Model: AL-135-A-KD
• Category: Luxury Aluminum Pergola
• Roof type: Motorized louver roof
• Post: 135 x 135 mm
• Louver blade: 223.8 x 50 mm
• Side beam: 250 x 75 mm
• Water gutter: 67.2 x 43 mm
• Standard sizes: 3 x 5 m / 3 x 6 m / 4 x 4 m / 4 x 5 m / 4 x 6 m (heights 2.5 m / 2.7 m)
• Drainage: Waterproof louver grooves for improved drainage
• Screens: Zip screen option (manual or motorized)
• Lighting: LED strips — warm white / white / RGB; louver and beam lighting positions
• Safety: Water and electricity separated for motorized configurations
• Positioning: Ultra-Luxury / premium outdoor-room projects
