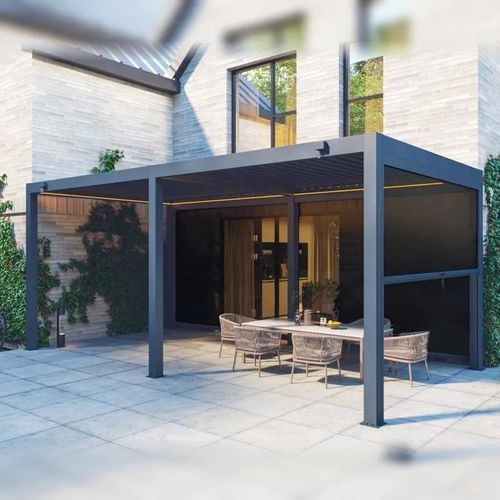

Wall-mounted pergola AL-120-B-KD

self-supportingaluminumwith mobile slats

Short description
A refined aluminum pergola for residential patios, gardens and terraces. The AL-120-B-KD combines 120 x 120 mm posts with large 180 x 36.2 mm louver blades, concealed top linkage and an optional hidden motor. Available in manual or motorized roof operation and in standard 3 x 3 m and 3 x 4 m packages for common residential projects.

Key features

• Concealed top linkage and hidden motor option for a clean architectural finish
• Large louvers 180 x 36.2 mm for strong roof presence and improved behaviour under snow load
• Post profile 120 x 120 mm for stable four-post or wall-adjacent layouts
• Manual or motorized louver roof operation
• Standard sizes 3 x 3 m and 3 x 4 m (available heights in specifications)
• Blade groove design to simplify on-site installation
• Zip screen available manual or motorized for side shading and privacy
• LED strip options: warm white, white or RGB for evening use

Configuration & package options
The AL-120-B-KD is offered as a manual roof package or upgraded to a motorized package with the hidden motor design. Common accessories include LED louver lighting, zip blinds (manual or motorized), sliding or folding glass doors, sliding shutters, adjustable louver walls and fixed slat walls. Standard finish choices include Light Neutral, Graphite Grey and Dark Charcoal.

Design & installation
Designed for residential architecture where a refined visual appearance is required. Supports wall-attached patio layouts or freestanding four-post garden installations. The large louver profile and concealed mechanism deliver a cleaner roof line suited to contemporary exterior designs.

Why buyers choose AL-120-B-KD

• Concealed linkage for a minimal roof appearance
• Hidden motor option for discreet motorized operation
• Large 180 mm blades for stronger architectural presence and improved snow-load response
• Grooved blade design to ease on-site assembly
• Standard residential coverage with 3 x 3 m and 3 x 4 m packages

Model comparison (summary)

• AL-120-B-KD — Refined aluminum model; manual or motorized roof; standard 3 x 3 m, 3 x 4 m; for buyers seeking hidden linkage and hidden motor design
• AL-100-A-KD — Entry-level aluminum model; manual or motorized; 3 x 3 m, 3 x 4 m; accessible solution for residential shade projects
• AL-120-A-KD — Mid-level aluminum model; manual or motorized; 3 x 3 m, 3 x 4 m; for buyers needing stronger aluminum positioning and improved snow-load capacity
• AL-120-C-KD — Premium aluminum model; manual or motorized; project-based sizes; for residential projects needing stronger presence and custom layouts

Notes
Finishes, roof operation, screens, LED lighting and accessory grouping are confirmed during specification and order to ensure the chosen appearance and export-ready packaging.

Technical specifications

• Model: AL-120-B-KD
• Category: Aluminum pergola
• Post: 120 x 120 mm
• Louver blade: 180 x 36.2 mm
• Side beam (manual): 150 x 33.5 mm
• Side beam (motorized): 165 x 56 mm
• Water gutter: 57.8 x 29.5 mm
• Available sizes: 3 x 3 x 2.5 m / 3 x 4 x 2.5 m
• Louver roof operation: Manual or motorized
• Zip screen: Manual or motorized option
• LED strips: Warm white / white / RGB option
• Design: Concealed top linkage and hidden motor option
• Installation: Wall-adjacent patio or freestanding garden pergola
