Roller shutter automation S/E

for windowsswingsliding

Description

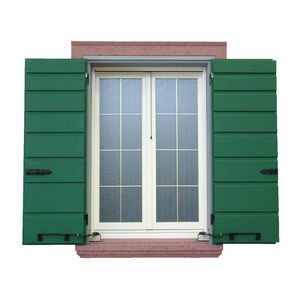

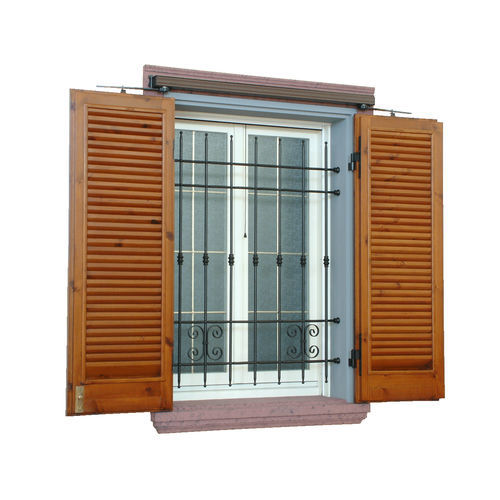

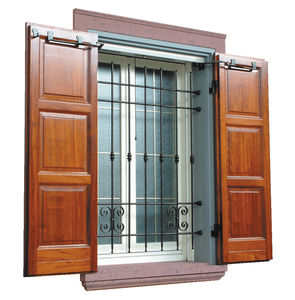

The Actuator S/E is designed to operate shutters and glazed frames. This model is installed in the wall above the opening, making it particularly suitable where grills or mosquito nets prevent side mounting. It can be fitted to existing shutters and windows without modifying the wall or sashes.

Design and operation
The compact, unobtrusive design (60 x 50 mm) preserves the appearance of the frame. Motion is smooth and quiet, with the ability to stop the leaves at any position; a manual override is provided for emergency operation.

General features
The actuator consists of two 230 V gearmotors with maintenance-free steel mechanics, assembled inside an extruded prepainted aluminium casing. A mechanical safety clutch ensures safe operation under load, including strong wind gusts. All steel parts receive anti-corrosion treatment. The components form a robust monoblock structure, supplied to size and ready for installation.

Control units
Movement of the leaves can be controlled in the following ways:

• Synchronized with C/C Control Unit (automatic): allows opening and closing a single shutter or all house shutters simultaneously (centralized control). The C/C unit can be paired with an RX2 radio receiver and remote control.
• Synchronized with DP1 Control Unit (push-to-run).
• Separate control with two double pushbuttons with push-to-run (two-double-pushbutton wiring available).

Electric locks
Electric locks, available on request, increase holding against external tampering. Two options are offered: hook G/I (assembled inside the casing, window only) or hook G/E (externally fixed to the sash, for shutter and window).

Integrability
Ancellotti automation systems can be integrated with home automation technologies. They can also be connected to UPS units to keep the system operational during power failures.

Technical data Actuator S/E
Power: 230 V 50 Hz
Consumption: 0.45 A
Couple (torque): 42 Nm
Operation time for 180°: 13 sec
Max irreversible torque: 90 Nm
Noise level: 33 dB

Characteristics / Technical specifications

• Two 230 V gearmotors with maintenance-free steel mechanics
• Extruded prepainted aluminium casing
• Mechanical safety clutch
• Anti-corrosion treatment on steel components
• Monoblock support structure, supplied to measure and ready to install
• Compact dimensions: 60 x 50 mm
• Ability to stop leaves at any position and manual emergency operation
• Integrable with control units (C/C, DP1) and RX2 radio receiver; compatible with UPS
• Optional electric locks: hook G/I and hook G/E
