Roller shutter automation S/A

swingsliding

Description

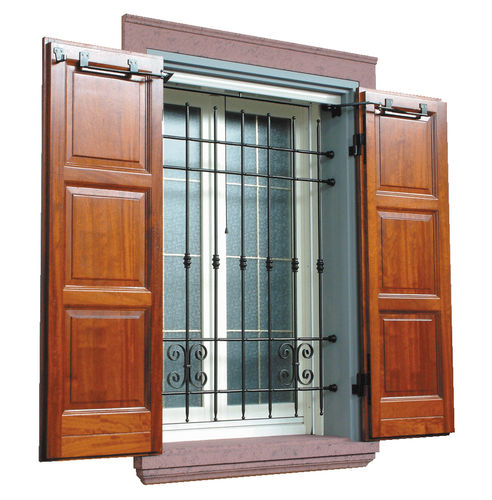

The Serratore S/A is designed to operate roller shutters and similar closures, combining compact dimensions, refined appearance and broad application versatility. It can be installed on existing shutters without modifying frames or leaves and is also available for recessing into the lintel using a dedicated aluminium channel.

Main functional features

• Durable, reliable construction with a harmonious design.
• Extruded aluminium casing as load-bearing structure (6 x 5 cm).
• Variable-length arm with sinusoidal sliding guide to adapt to different shutter types.
• Two synchronized, soundproof gear motors (33 dB) operating at 230 V.
• Mechanical anti-wind safety clutch and manual emergency operation.
• Integrated anti-intrusion electric lock (external mounting options available on request).
• Steel mechanics with anti-corrosion treatment; maintenance-free components.
• Ability to stop leaves at any position; smooth and quiet movement.
• Installation possible below the lintel or on the sill; concealment by aluminium channel for recessed installation.

Installation and variants

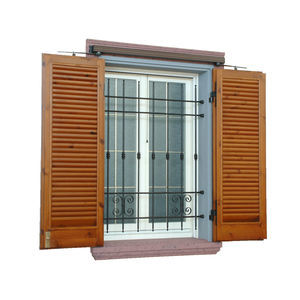

Can be installed under the lintel or on the sill; recessed installation into the lintel is available using an aluminium channel for improved aesthetics. Versions for outdoor use and different fixing accessories are available to fit flush-fit or folding leaves.

Control units and commands
Control modes for sash movement:

• Synchronized with Centralina C/C for automatic operation and centralized control of multiple shutters.
• Synchronized with Centralina DP1 for dead-man control.
• Separate operation with two double dead-man pushbuttons.

Electric locks
Electric locks, supplied on request, increase closing retention: internal hook G/I (mounted inside the casing) and external hook G/E (surface-mounted on the leaf) are available.

Integrability
The automation can be integrated with home automation systems and connected to uninterruptible power supplies (UPS) for operation during mains failure.

Technical data
Power supply: 230 V 50 Hz
Current consumption: 0.45 A
Torque: 42 Nm
Operating time for 180°: 13 s
Maximum irreversible torque: 90 Nm
Noise level: 33 dB

Characteristics / technical specifications

• Model: S/A
• Casing: Pre-painted extruded aluminium, load-bearing structure 6 x 5 cm
• Drive: 2 synchronized gear motors 230 V, 33 dB
• Current consumption: 0.45 A
• Operating torque: 42 Nm
• Maximum irreversible torque: 90 Nm
• 180° travel time: 13 s
• Mechanics: Steel with anti-corrosion treatment, maintenance-free components
• Wind protection: Mechanical safety clutch
• Manual operation: Yes, emergency mode
• Integration: Compatible with Centralina C/C, DP1, radio receiver and home automation systems; possible UPS connection
