Roller shutter automation S/L

sliding

Description

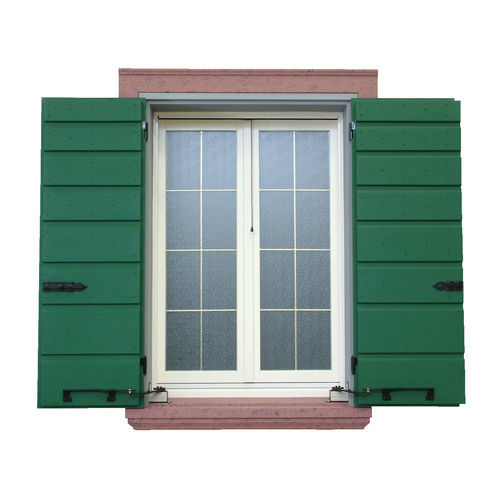

The S/L recessed-side shutter operator combines compact dimensions (60 x 50 mm) with installation versatility. It is applicable to all types of frames and is particularly suitable for arched or custom-shaped shutters, as installation preserves the aesthetic lines.

Characteristics
The unit consists of a gear motor (230 V) with maintenance-free steel mechanics, assembled inside a pre-painted extruded aluminum housing. A mechanical safety clutch protects the automation in strong wind gusts. All steel components receive anti-corrosion treatment. The variable-length arm and sinusoidal sliding guide enable easy adaptation to various shutter types and ensure reliable operation.

Control modes

• Synchronized with automatic Central Unit C/C (open/close single shutter or all shutters simultaneously via centralized command)
• Compatible with RX2 radio receiver and remote control
• Synchronized with Central Unit DP1 with dead-man control
• Individual operation with two double dead-man push-buttons

Electric lock
The G/E hook electric lock (available on request) increases closing retention against attempted external tampering.

Integrability
Ancellotti automations can be integrated with home automation systems and connected to uninterruptible power supplies (UPS) to maintain operation during power failures.

Technical data S/L shutter operator
Power supply: 230 V 50 Hz
Absorption: 0.45 A
Torque: 42 Nm
Operating time for 180°: 13 sec
Maximum irreversible torque: 90 Nm
Noise: 33 dB

Characteristics / technical specifications

• Model: S/L
• Power supply: 230 V 50 Hz
• Absorption: 0.45 A
• Rated torque: 42 Nm
• Maximum irreversible torque: 90 Nm
• Operating time for 180°: 13 seconds
• Noise level: 33 dB
• Mechanics: maintenance-free steel
• Housing: pre-painted extruded aluminum
• Anti-corrosion treatment on steel components
• Integrated mechanical safety clutch
• Variable-length arm and sinusoidal sliding guide
• Emergency manual operation available
• Installation: under lintel or on sill with INOX steel boxes
