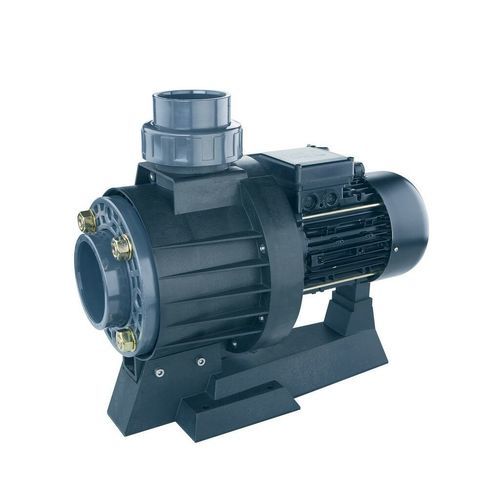

Hydromassage system swimming pool pump DOUBLE MODEL

Description
Designed for counter-current swimming systems. Constructed in plastic (ABS). Motor shaft with double insulation. Motor protection IP-54. Power 3.3 kW (4.5 HP), three-phase 230/400 V 50 Hz. Model CCIV 450T, product code 11509. Spare parts available.

Table
CODE | Description | Spare parts
11509 | 3.3 kW (4.5 HP) - Three-phase 230/400 V 50 Hz | See spare parts

Documents available

• Leaflet EN PT
• Leaflet EN ES
• Installation manual EN ES
• Installation manual EN ES FR +
• Product Data Sheet 11509 EN ES

Technical characteristics / specifications

• Material: Plastic (ABS)
• Motor shaft: Double insulation
• Motor protection: IP-54
• Power: 3.3 kW (4.5 HP)
• Supply: Three-phase 230/400 V, 50 Hz
• Metal parts in contact with water: Stainless steel AISI-316
• Product code: 11509
• Model: CCIV 450T
• Spare parts: Available
