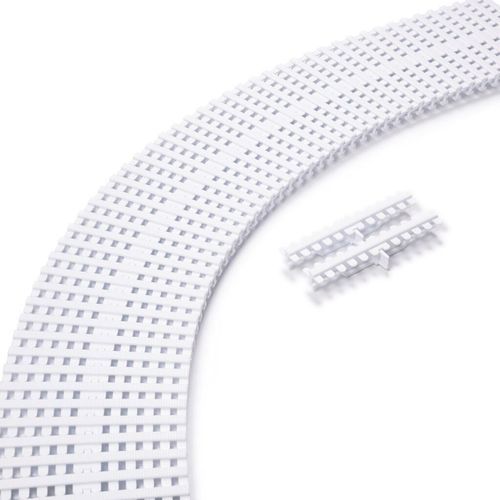

Polypropylene grating for drain channel 28656

for swimming poolmodular

Product description
Made of polypropylene (PP) stabilised against UV. Modules assemble by fitting together to form curved runs. Non-slip surface. Other colours available on request. Units per metre: 45 units/m.

Table
CODE | Description | Spare parts
28656 | Height 22 mm, width 195 mm
28657 | Height 22 mm, width 245 mm
28658 | Height 22 mm, width 295 mm
28659 | Height 22 mm, width 335 mm
28660 | Height 35 mm, width 195 mm
28661 | Height 35 mm, width 245 mm
28662 | Height 35 mm, width 295 mm
28663 | Height 35 mm, width 335 mm

Characteristics / technical specifications

• Material: Polypropylene (PP), UV‑stabilised
• Assembly: Modules fitted together (modular system) for curves
• Surface: Non‑slip
• Colours: Other colours available on request
• Units per metre: 45 units/m
• Available sizes and codes: 28656 (H 22 mm × W 195 mm), 28657 (H 22 mm × W 245 mm), 28658 (H 22 mm × W 295 mm), 28659 (H 22 mm × W 335 mm), 28660 (H 35 mm × W 195 mm), 28661 (H 35 mm × W 245 mm), 28662 (H 35 mm × W 295 mm), 28663 (H 35 mm × W 335 mm)
• Compliance: EN‑13451‑1 (8 mm); slip resistance: class 3 (Rd>45) according to UNE‑ENV 12633:2003
