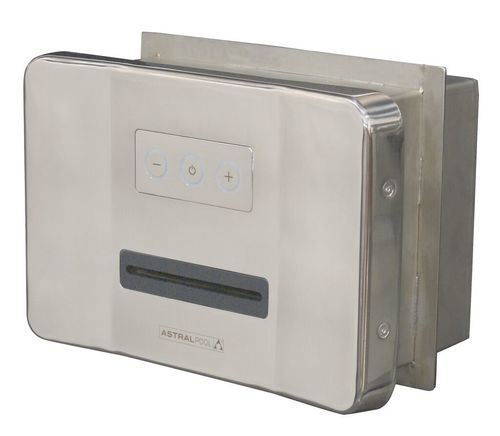

Pump counter-current unit Advance N-D

manual

Product overview

• Countercurrent kit for swimming pools suitable for concrete and liner installations; provides an adjustable counterflow for training and rehabilitation applications.

Kit composition

• Return inlet (air-water) made of polished AISI-316 stainless steel.
• Illuminated ON‑OFF and +/- piezoelectric push button made of AISI-316 stainless steel.
• Suction grille with a capacity of 60 m3/h made of polished AISI-316 stainless steel.
• 5.5 HP pump.
• Flow rate adjustable from 23 m3/h to 60 m3/h via variable-speed drive.
• Power control cabinet included.

Codes and applications
CODE | Description | Spare Parts
65497 | Advance ND unit for concrete pools | See Spare Parts
66043 | Advance ND unit for liner pools | See Spare Parts


Documents available

• Leaflet EN
• Product Data Sheet 65497 EN ES
• Product Data Sheet 66043 EN ES
• Installation manual Advance N.D EN ES FR IT PT DE

Technical specifications

• Pump power: 5.5 HP
• Flow rate: adjustable from 23 m3/h to 60 m3/h (variable-speed drive)
• Suction grille capacity: 60 m3/h
• Return inlet: air-water, polished AISI-316 stainless steel
• Push button: illuminated ON‑OFF and +/- piezoelectric, AISI-316 stainless steel
• Includes power control cabinet
• Available product codes / variants: 65497 (Advance ND unit for concrete pools), 66043 (Advance ND unit for liner pools)
