Foundation anchor bolt Elegance

Description
The equipotential anchor enables the connection of a ground/earth conductor to pool ladders that do not have anchoring on the pool deck, such as Elegance and split ladders. Connection of metallic ladders to earth is mandatory according to standards and is recommended to reduce corrosion risk. Manufactured in AISI-304L stainless steel and supplied for use in concrete and liner pools. The anchor assembly comprises a recessed base to be cast or sealed into the deck, washer, screws and the equipotential bonding. Each ladder requires 2 units. Compatible ladder codes are listed below.

Codes / Variants
CODE | Description | Spare parts
73318 | Equipotential anchor — 1 unit | See spare parts
73319 | Equipotential anchor kit | See spare parts

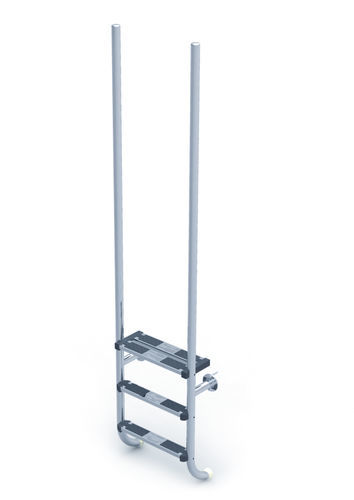

45782 | Ladder: 2 steps + 1 safety step | See spare parts
45783 | Ladder: 3 steps + 1 safety step | See spare parts

Documents available

• Installation manual EN ES FR +
• Product datasheet EN ES FR (related ladder codes)

Characteristics / Technical specifications

• Function: equipotential anchor to permit connection of ground/earth conductor when ladder has no deck anchoring
• Regulation: mandatory connection of metallic ladders to earth according to applicable norms
• Material: AISI-304L stainless steel
• Application: concrete and liner pools
• Components: recessed base (to be sealed/cast into deck), washer, screws, equipotential bonding
• Compatibility: Elegance and split ladders (codes: 45782, 45783, 01456, 01457, 01458, 01459, 08090, 08091, 08092)
• Packaging / quantity recommendation: 2 units per ladder
