Polypropylene grating LONGITUDINAL

for swimming poolfor drain channelsUV-resistant

Product overview

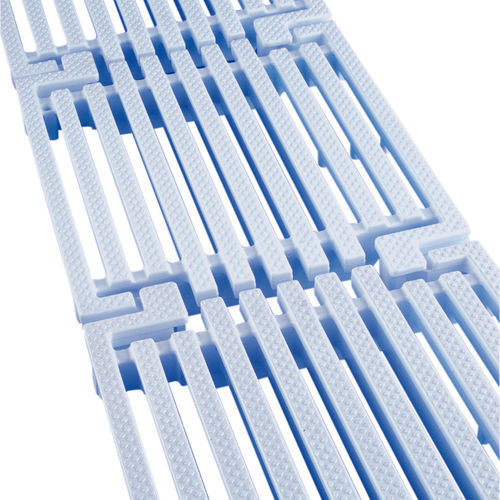

Longitudinal grating tile for pool overflow channels, manufactured in PP (polypropylene) stabilized against UV. Designed to channel excess pool water into the drainage system and to keep the pool surround dry. Modules connect by male-female click coupling; flexible units allow curved installations with a minimum radius of 5 m. Standard colour: white.

Codes and dimensions
05581 — Height 24 mm. Width 195 mm.
05582 — Height 24 mm. Width 245 mm.
05583 — Height 24 mm. Width 295 mm.
05584 — Height 24 mm. Width 345 mm.

Installation and assembly
Construct the channel 5 mm wider than the grating to permit easy removal and thermal expansion. Modules are supplied in click-fit units; 5 units = 1.024 m for standard run lengths. Male-female coupling ensures secure alignment and quick assembly on site.

Technical specifications

• Material: PP (polypropylene) stabilized against UV
• Standard colour: white
• Unit height: 24 mm
• Available widths: 195 / 245 / 295 / 345 mm (codes above)
• Module coupling: male-female click system (5 units = 1.024 m)
• Flexibility: minimum curve radius 5 m
• Recommended channel clearance: +5 mm relative to grating width for removal and expansion

Documents

• Commercial brochure available (EN / ES / FR)
