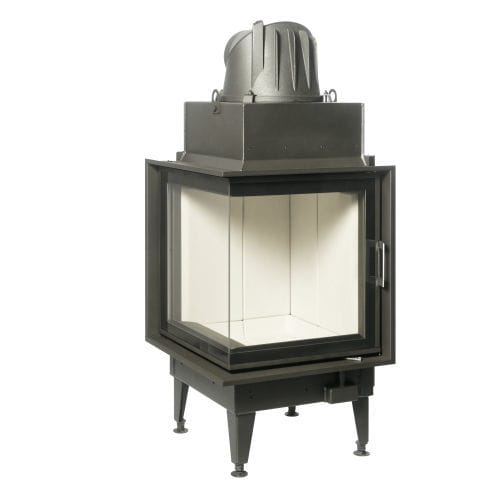

Corner fireplace insert 55X55X57 K 2.0
wood-burningsteelcontemporary

Corner fireplace insert - 55X55X57 K 2.0 - AUSTROFLAMM - wood-burning / steel / contemporary
Corner fireplace insert - 55X55X57 K 2.0 - AUSTROFLAMM - wood-burning / steel / contemporary
Add to favorites
Compare this product

Characteristics

Type
corner
Energy source
wood-burning
Material
steel
Style
contemporary
Heat output

13 kW

Min.: 3.5 kW

Max.: 9 kW

Flue size

180 mm
(7 in)

Weight

109 kg
(240.3 lb)

Height

1,457 mm
(57.4 in)

Width

591 mm
(23.3 in)

Depth

579 mm
(22.8 in)

Description

Corner stoves for an even better view of the fire Austroflamm corner stoves offer a view of romantic wood fire from two different positions in the room. DIMENSIONS AND WEIGHTS Width (body installation dimension) [mm] 550 Door frame, height [mm] 570 Insulation layer thicknesses at installation base [mm] (Promasil 950 KS) 0 Insulation layer thicknesses, lateral / rear [mm] (Promasil 950 KS) 60 Insulation layer thicknesses at ceiling [mm] (Promasil 950 KS) 60 Ceramic flues - max. length [m] 4 HEAT OUTPUT Energy efficiency category A Circulating air cross-section without / with metal secondary heating surface [cm²] 700/1000 FEATURES Hinged doors yes Double pane x DATA FOR THE CHIMNEY SWEEP Flue gas mass flow [g/s] 13 Flue gas temperature [°C] 330 Minimum delivery pressure at nominal heat output [Pa] 14
