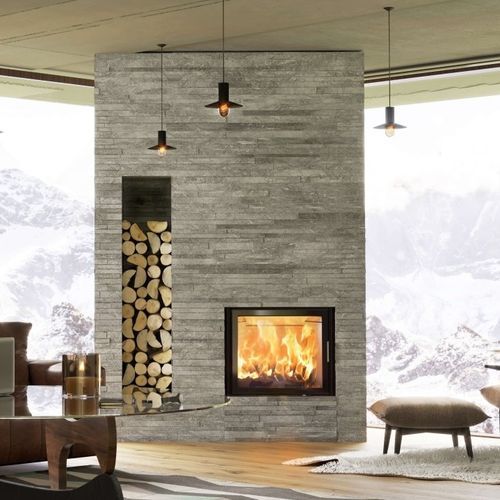

Wood-burning fireplace insert 65x57 K 2.0contemporary
Add to favorites
Compare this product
Characteristics
- Energy source
- wood-burning
- Style
- contemporary
- Heat output
Max.: 11 kW
8 kW
Min.: 4 kW
- Flue size
180 mm
(7 in)- Weight
127 kg
(279.99 lb)- Height
1,505 mm
(59.3 in)- Width
739 mm
(29.1 in)- Depth
516 mm
(20.3 in)
Description
Quick-change artists
Our fireplace inserts fill any room with cozy warmth and unique individual design.
DIMENSIONS AND WEIGHTS
Width (body installation dimension) [mm] 650
Door frame, height [mm] 570
Insulation layer thicknesses to the installation floor [mm] (Promasil 950 KS) 60
Insulation layer thicknesses lateral / rear [mm] (Promasil 950 KS) 90
Insulation layer thicknesses to the ceiling [mm] (Promasil 950 KS) 90
Ceramic flues - max. length [m] 4
HEAT OUTPUT
Energy efficiency category A
Circulating air cross-section without / with metal secondary heating surface [cm²] 700/1200
FEATURES
Hinged doors yes
Double pane x
DATA FOR THE CHIMNEY SWEEP
Total flue gas flow [g/s] 6.76
Flue gas temperature [°C] 317
Minimum feed pressure at nominal heat efficiency [Pa] 12
Catalogs
inserts - technical documentation
120 Pages
