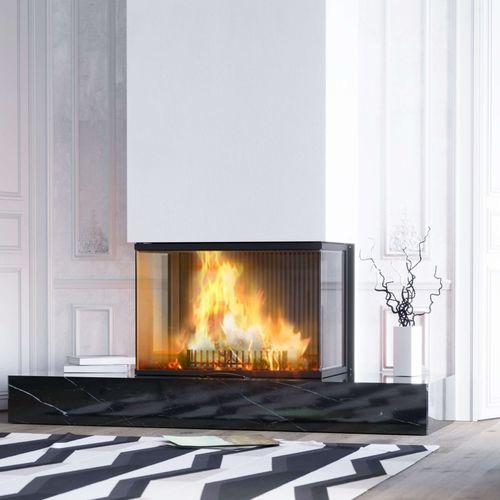

3-sided fireplace insert Vuur Drie 80
wood-burningcontemporary

3-sided fireplace insert - Vuur Drie 80 - AUSTROFLAMM - wood-burning / contemporary
3-sided fireplace insert - Vuur Drie 80 - AUSTROFLAMM - wood-burning / contemporary
3-sided fireplace insert - Vuur Drie 80 - AUSTROFLAMM - wood-burning / contemporary - image - 2
3-sided fireplace insert - Vuur Drie 80 - AUSTROFLAMM - wood-burning / contemporary - image - 3
Add to favorites
Compare this product

Characteristics

Type
3-sided
Energy source
wood-burning
Style
contemporary
Heat output

Max.: 18 kW

15 kW

Min.: 7.5 kW

Flue size

180 mm
(7 in)

Weight

312 kg
(687.84 lb)

Height

1,517 mm
(59.7 in)

Width

835 mm
(32.9 in)

Depth

592 mm
(23.3 in)

Description

Black Beauty The Vuur Drie Serie from Austroflamm makes an impression with its simple but elegant design. The black firebox and the particularly narrow frame profiles make the fireplace insert a modern designer piece. Dimensions Equipment curved glass Flat Performance data energy efficiency class A+ Testing Federal Emission Control Ordinance Level 1+2 Certificate / green flame green 7* Width (body installation dimension) [mm] 835 Door frame, height [mm] 570 Insulation layer thicknesses to the installation floor [mm] (Promasil 950 KS) 0 Insulation layer thicknesses lateral / rear [mm] (Promasil 950 KS) 0/60 Insulation layer thicknesses to the ceiling [mm] (Promasil 950 KS) 0 Ceramic flues - max. length [m] - HEAT OUTPUT Energy efficiency category A+ Combustion air requirement [m³/h] 43.2 Circulating air cross-section without / with metal secondary heating surface [cm²] 700/- Hypocausts according to technical regulations yes FEATURES Sliding door yes DATA FOR THE CHIMNEY SWEEP Total flue gas flow [g/s] 14.8 Flue gas temperature [°C] 254 Minimum feed pressure at nominal heat efficiency [Pa] 13
