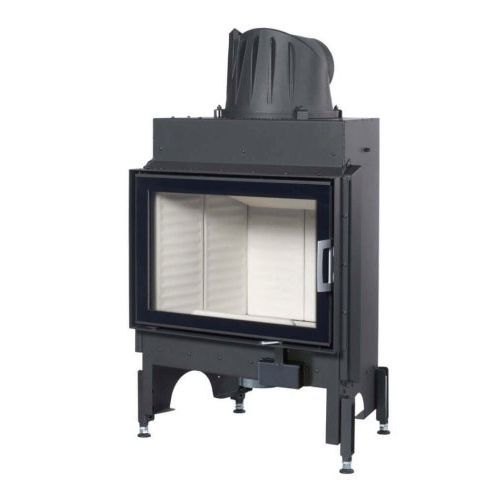

Front stove slows down and relaxes
Thanks to the multitude of models and sizes you can find the right fireplace insert for any room size. From the small cozy living room to the wide-area living space, our fireplace inserts provide cozy warmth anywhere.
DIMENSIONS AND WEIGHTS
Width (body installation dimension) [mm] 650
Door frame, height [mm] 450
Insulation layer thicknesses to the installation floor [mm] (Promasil 950 KS) 60
Insulation layer thicknesses lateral / rear [mm] (Promasil 950 KS) 90
Insulation layer thicknesses to the ceiling [mm] (Promasil 950 KS) 90
Ceramic flues - max. length [m] 4
HEAT OUTPUT
Energy efficiency category A
Circulating air cross-section without / with metal secondary heating surface [cm²] 700/1200
FEATURES
Hinged doors yes
Double pane x
DATA FOR THE CHIMNEY SWEEP
Total flue gas flow [g/s] 7.32
Flue gas temperature [°C] 283
Minimum feed pressure at nominal heat efficiency [Pa] 12
