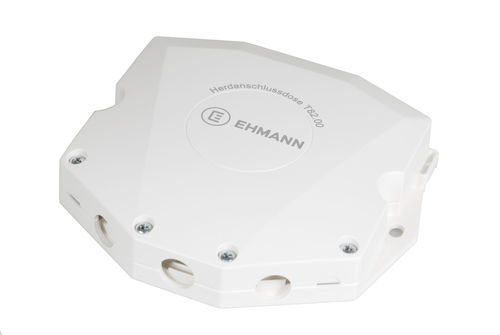

Electrical installation junction box AP-Vario T82.00

for kitchenwall-mountedsurface mounted

Product description
Surface-mounted cooker connection box for individual connection of oven, hob and additional cooking appliances. Allows connection of up to 5 circuits for separate devices (e.g. steam oven, warming drawer). VDE-certified lever terminals fixed in the housing enable secure multi-device connections. Integrated cable management with cable-tie slots on both sides. Designed for mounting on device boxes according to DIN 49073; wall mounting is possible either via device-box screws or additional fastening on the housing. Includes strain reliefs for improved safety and stability. Plastic housing with compact, modern appearance. Complies with DIN EN 60670-1/22, 61535 and 50525-2-11. EHMANN advantage: 100% quality control, German manufacturer, 5-year warranty.

Safety and installation instructions

• DANGER! Risk of fatal electric shock, arc flash or fire.
• Installation, wiring and assembly must be carried out only by a qualified electrician.
• Read safety instructions and manual carefully before commissioning and first use.
• Observe technical data and country-specific regulations.
• The supply cable must be protected by an all-pole disconnecting 16A overcurrent protection device (fuse/MCB provided by installer).
• The AP-Vario cooker connection box may only be mounted on non-combustible substrates in accordance with DIN 4102.
• When connecting multiple appliances, check for overload and suitability.
• Protect the device from direct moisture and wet conditions.

Product features / Equipment

• Connection options for up to 5 circuits
• VDE-certified lever terminals fixed in the housing
• Cable management: cable-tie slots on both sides
• Mounting on device boxes according to DIN 49073 or wall mounting possible
• Strain reliefs for increased safety and stability
• Compact, modern design
• Plastic housing

Technical specifications

• Brand: EHMANN
• Model: AP-Vario T82.00
• Product number (SKU/MPN): 8260x0000
• EAN (GTIN-13): 4012096013853
• Housing: plastic
• Standards / Quality: DIN EN 60670-1/22, 61535, 50525-2-11
• Connections: up to 5 circuits
• Terminals: VDE-certified lever terminals, fixed in housing
• Mounting: for device boxes according to DIN 49073; wall mounting via device-box screws or additional fastening on housing
• Warranty: 5 years (manufacturer specification)
