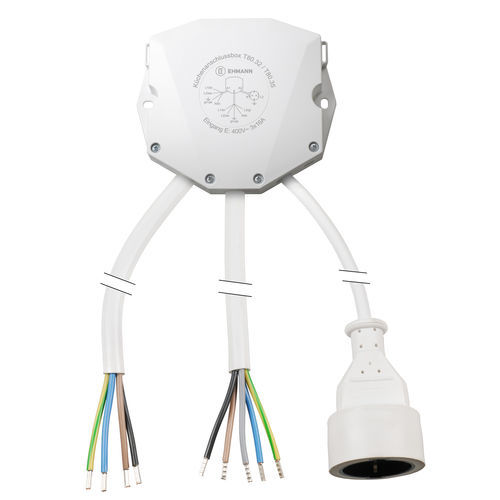

Kitchen junction box Pro T80.32wall-mounted
Add to favorites
Compare this product
Characteristics
- Application
- for kitchen
- Mounting
- wall-mounted
Description
Product description
Safety instructions
Technical specifications

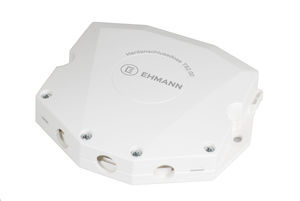

- Professional, pre-assembled and permanently sealed kitchen connection box – no time-consuming installation or loose components on site.
- For connecting hob and oven to a cooker connection outlet; devices can be positioned separately.
- Available with 2m or 5m supply cables for increased installation flexibility.
- VDE-certified lever/clamp terminals fixed in the housing – suitable for connecting multiple appliances.
- Cable management via cable-tie slots on both sides.
- Intended for mounting on device boxes according to DIN 49073; wall mounting via device box screws or additional housing fixation possible.
- Equipped with strain reliefs for safety and mechanical stability.
- Elegant, modern design; compliant with DIN EN 60670-1/22, 61535, 50525-2-11.
- EHMANN advantage: 100% quality control, German manufacturer, 5-year warranty; high-quality workmanship and reliable operation.
Safety instructions
- DANGER! Risk to life from electric shock, arc or fire.
- Installation, connection and assembly must be performed exclusively by a qualified electrician.
- Before commissioning and first use: read the safety instructions and manual carefully.
- Technical data and country-specific regulations must be observed; e.g. follow the "5 safety rules".
- Do not operate damaged devices; do not open damaged units – replace them.
- The supply cable (provided on site) must be protected by an all-pole disconnecting 16A overcurrent protective device (all-pole with respect to active conductors). Protection is to be provided on site.
- Avoid forming loops with excess cable.
- The protective-earth socket must not be operable by untrained persons when installed.
- The PRO kitchen connection box may only be mounted on non-combustible substrates in accordance with DIN 4102.
- Use the installed protective-earth socket only for appliances with rated power up to 3600W.
- Connection of a multi-socket extension to the protective-earth socket is prohibited.
- Protect the device from direct moisture and wetness.
Technical specifications
- Supply cable: 2m supply cable (variants: 2m or 5m)
- Housing: plastic
- EAN (GTIN-13): 4012096013792
- Article number / SKU: 8066x0302
- MPN: 8066x0302
- Standards: DIN EN 60670-1/22, 61535, 50525-2-11
- Max. rated power of protective-earth socket: 3600W
- Required protection (on-site): all-pole disconnecting 16A overcurrent protective device
