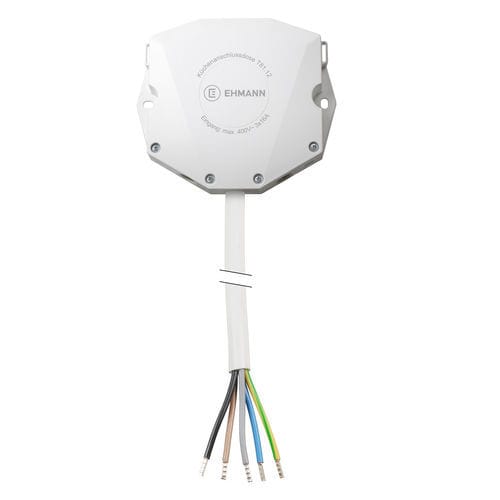

Kitchen junction box Comfort T81.12built-in
Add to favorites
Compare this product
Characteristics
- Application
- for kitchen
- Mounting
- built-in
Description
Product information "Kitchen connection box Comfort T81.12"
Safety and warning instructions
Technical data
Connection cable: 2 m prewired cable
Housing: plastic
Characteristics / technical specifications
- Hob connection box with prewired 5‑core connection cable for cooktop or cooktop/oven combination
- Includes 2 m connection cable for greater installation flexibility
- VDE‑certified lever terminals, fixed in the housing – suitable for connecting multiple appliances
- Cable management via elongated cable‑tie slots on both sides
- Designed for mounting on appliance junction boxes according to DIN 49073
- Wall mounting optionally via junction box screws or an additional fastening point on the product housing
- Equipped with strain reliefs for safety and stability
- Elegant, modern design
- Compliant with DIN EN 60670‑1/22, 61535, 50525‑2‑11
- EHMANN advantage – 100% quality control, German manufacturer, 5‑year warranty
- EHMANN quality – precise workmanship and reliable operation
Safety and warning instructions
- DANGER! Risk of fatal electric shock, arc or fire.
- Installation, connection and assembly must be carried out exclusively by a qualified electrician.
- Before commissioning and first use: read safety instructions and the manual carefully.
- Technical data and country‑specific regulations must be observed.
- Do not operate damaged devices; damaged devices must be taken out of service immediately.
- The supply cable (provided on site) must be protected by an all‑pole disconnecting 16 A overcurrent protective device (all‑pole with respect to the active conductors). Protective device to be provided on site.
- Avoid forming loops with surplus cable.
- The installed protective‑earth outlet must not be operable by unqualified persons.
- The kitchen connection box is intended for mounting on appliance junction boxes according to DIN 49073.
- Mount the kitchen connection box only on non‑combustible substrates in accordance with DIN 4102.
- The mounted protective‑earth outlet is intended for appliances whose rated power does not exceed 3600 W.
- Connecting a power strip to the protective‑earth outlet is prohibited.
- Protect the device from direct moisture and wet conditions.
- Transport or improper use may cause damage. In that case: do not open or operate the device. Replace any damaged device.
- We do not accept warranty or guarantee for any replacement or modification work on the COMFORT kitchen connection box.
Technical data
Connection cable: 2 m prewired cable
Housing: plastic
Characteristics / technical specifications
- Brand: EHMANN
- Model: Comfort T81.12
- EAN: 4012096013815
- Item number / SKU: 8166x0102
- Connection cable: prewired 5‑core cable, 2 m
- Housing material: plastic
- Standards: DIN EN 60670‑1/22, 61535, 50525‑2‑11
- Special features: VDE‑certified lever terminals, elongated cable‑tie slots on both sides, strain reliefs
- Warranty: 5 years
