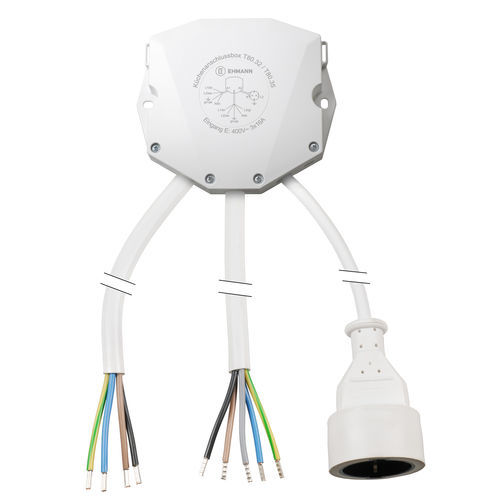

Kitchen junction box Pro T80.35

built-inwall-mounted

Product description
Preconfigured, factory-sealed kitchen connection box designed for straightforward installation without separate components. For connecting hob and oven to a cooker connection outlet; devices can be positioned separately. Available with 2 m or 5 m supply cables (product variant: 5 m). VDE-certified lever terminals fixed inside the enclosure permit connection of multiple appliances. Cable management via elongated cable-tie slots on both sides. Intended for mounting on appliance boxes according to DIN 49073; wall mounting optionally via appliance box screws or an additional fastening point on the housing. Includes strain reliefs for safety and stability. Modern, unobtrusive design. Complies with DIN EN 60670-1/22, 61535, 50525-2-11. EHMANN advantage — 100% quality control, German manufacturer, 5-year warranty.

Safety and warnings

• DANGER! Risk of death from electric shock, arc or fire.
• Installation, connection and assembly must be carried out exclusively by qualified electrical personnel.
• Before commissioning and first use: read safety instructions and manual carefully.
• Technical data and country-specific regulations must be observed.
• Do not operate damaged units; defective devices must be taken out of service immediately.
• The supply cable (on site) must be protected by an all-pole disconnecting 16 A overcurrent protective device (all poles with respect to active conductors). Protection to be provided on site.
• Avoid forming loops with excess cable.
• The protective-earth socket must not be operable by untrained persons when installed.
• The PRO kitchen connection box may only be mounted on non-combustible surfaces in accordance with DIN 4102.
• Usage of the installed protective-earth socket is intended for appliances with a rated power not exceeding 3600 W.
• Connecting a multiple-socket extension to the protective-earth socket is prohibited.
• Protect the unit from direct moisture and wetness.
• Transport or improper use may damage the device. Do not open or operate a damaged device; replace damaged units.

Technical specifications

• Supply cable: available with 2 m or 5 m (product variant: 5 m)
• Housing: plastic
• VDE-certified lever terminals fixed in the enclosure
• Cable management: elongated cable-tie slot on both sides
• Mounting: for appliance boxes according to DIN 49073; wall mounting via appliance box screws or fastening on the housing
• Strain reliefs for increased safety and stability
• Standards/Quality: DIN EN 60670-1/22, 61535, 50525-2-11
• Warranty: 5 years (manufacturer information)
• EAN: 4012096013808
• Manufacturer/brand: EHMANN
