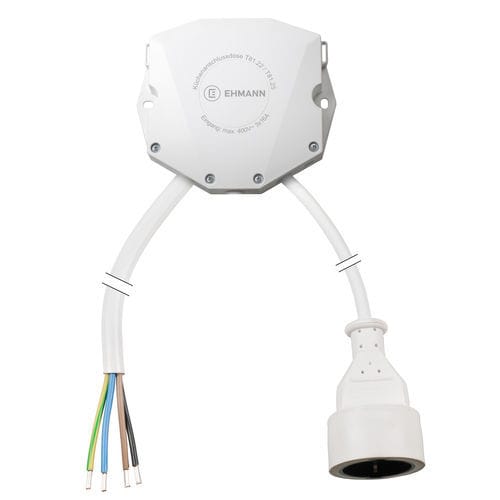

Wall junction box Comfort T81.22for electrical installationinteriorfor kitchen
Add to favorites
Compare this product
Characteristics
- Application
- for wall, for electrical installation, interior, for kitchen
- Mounting
- wall-mounted
Description
Product description
Variant selection
Installation and safety notes
Technical features / specifications

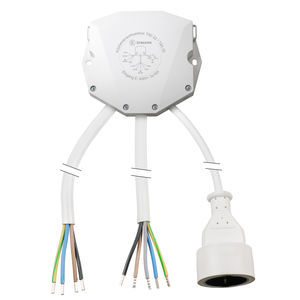

- Connection box for oven and cooktop with prewired connection leads
- Choice of prewired leads: 2 m (factory) or 5 m for increased flexibility
- VDE-certified lever terminals fixed in the housing – allows connection of multiple devices
- Cable management via cable-tie elongated holes on both sides
- Strain reliefs for improved safety and stability
- Sleek, modern design
- Quality compliance: DIN EN 60670-1/22, 61535, 50525-2-11
- Manufacturer advantages: 100% quality control, German manufacturer, 5-year warranty
Variant selection
- 2 m connection lead (factory setting)
- 5 m connection lead (optional)
Installation and safety notes
- Designed for mounting on device boxes according to DIN 49073
- Wall mounting via device box screws or additional fastening option on the product housing
- Installation, connection and assembly must only be carried out by a qualified electrician
- Protection: the supply cable (provided on site) must be protected by an all-pole disconnecting 16 A overcurrent protective device (protection provided on site)
- The mounted protective-earth socket is intended for appliances with a rated power not exceeding 3600 W
- Protect from direct moisture and wetness; avoid looped routing of excess cable; do not operate damaged equipment
- Connecting a multi-socket extension to the protective-earth socket is prohibited
Technical features / specifications
- Connection lead: 2 m (configurable to 5 m)
- Housing: plastic
- Lever terminals: VDE-certified, fixed in housing
- Mounting: for device boxes according to DIN 49073; wall mounting via device box screws or additional fastening on housing
- Strain relief: present
- Standards: DIN EN 60670-1/22, 61535, 50525-2-11
- Max. recommended rated power: 3600 W
- Warranty: 5 years
- EAN: 4012096013846
- Article number / SKU: 8166x0202
