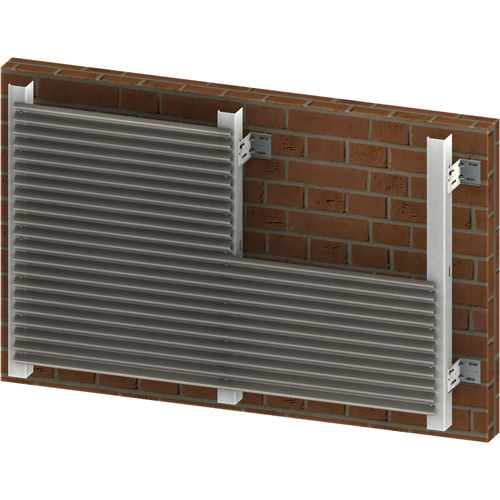

Metal ventilated facade TETRIS® WAVE

with fastener

Wavy Panel System. Through the possibility of arranging the panels horizontally, vertically or obliquely, this system allows both a slight structuring of the covering surfaces and a marked subdivision of the areas. The nuanced effects between lights and shadows generate a lively effect that is highlighted in the large façades. FEATURES: • Fluid shape of the sine wave with a harmonious appearance • Can be installed horizontally, vertically and obliquely • Lightweight and strong solution • 3D effect with different shapes • Wide range of metals and finishes available • Face Fixed • Easy and Quick installation of the panels MEASUREMENTS/ METAL THICKNESS: W 18/76 1064 W 27/111 1000 Metal Thickness: from 0,5 mm to 1,2 mm Standard Length: from 2000 to 6000 mm Maximum Length: 6200 mm MATERIALS AVAILABLE: Metal Sheets PROCESSING AVAILABLE: Perforation (standard shapes) FIXINGS AVAILABLE: CONNEX® EASY L CONNEX® EASY C CONNEX® EASY Ω ARCHITECTURAL SKINS® CUSTOM DESIGNED PRODUCTS Every element of the System can be customised to suit more complex design façades; thanks to our Architectural Skins® technical division, we can provide solutions with almost unlimited design freedom, through our range of different processing options: Custom Panel Perforation, Panel Bending, Custom Folding.
