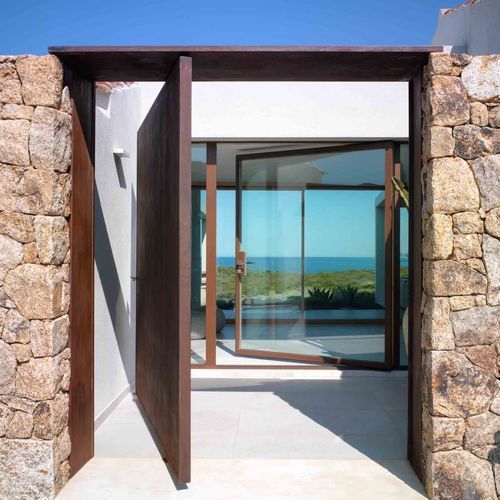

Entry door SKYLINEwoodensprucealuminum
Add to favorites
Compare this product
Characteristics
- Type
- entry
- Material
- wooden, oak, spruce, glass, aluminum
- Opening system
- pivoting
- Style
- minimal
- Glazing
- glazed
- Glass finishes
- clear glass
- Configuration
- 1 leaf
- Security level
- reinforced
- Technical characteristics
- security, automatic
- Color
- white, brown, beige
- Other characteristics
- lacquered
- Width
200 cm
(78.74 in)- Height
400 cm
(157.48 in)
Description
Overview
Skyline Pivot is a minimalist pivot window/door system available in vertical and horizontal configurations. It uses a concealed pivot mechanism and can be specified for inward or outward opening. The design prioritizes large glazed surfaces to maximise natural light and panoramic views.
Design and versions
The Skyline Vitrum option bonds a thin wooden profile to an external glass sheet to create a continuous glazed appearance. The result is a flush exterior glazing that emphasises visual continuity and an essential aesthetic.
Operating modes and features
Materials, finishes and applications
Functional notes
The pivot system is engineered for both aesthetic and reliable functional performance in design-led contexts; multiple variants and finishes are available to meet architectural requirements.
Technical specifications
Skyline Pivot is a minimalist pivot window/door system available in vertical and horizontal configurations. It uses a concealed pivot mechanism and can be specified for inward or outward opening. The design prioritizes large glazed surfaces to maximise natural light and panoramic views.
Design and versions
The Skyline Vitrum option bonds a thin wooden profile to an external glass sheet to create a continuous glazed appearance. The result is a flush exterior glazing that emphasises visual continuity and an essential aesthetic.
Operating modes and features
- Vertical pivot: inward or outward opening with concealed pivot; sash up to 2.0 m width × 4.0 m height; max sash weight 800 kg.
- Horizontal pivot: designed for large panoramic openings; rotation up to 15° for ventilation and up to 360° for cleaning/maintenance; max dimensions 3.0 m width × 1.5 m height; max sash weight 300 kg.
- Concealed pivot system ensures clean sightlines and functional rotation for maintenance and airflow.
Materials, finishes and applications
- Thin wooden profiles with options for external cladding (e.g., aluminium with corten effect).
- Available in lacquered spruce and natural or lacquered oak finishes.
- Vitrum configuration provides an uninterrupted external glazed surface for a minimal, panoramic look.
- Suitable for entrance doors, patio pivot doors and large architectural openings in residential and commercial projects.
Functional notes
The pivot system is engineered for both aesthetic and reliable functional performance in design-led contexts; multiple variants and finishes are available to meet architectural requirements.
Technical specifications
- Model: Skyline Pivot
- Versions: Vertical pivot (inward/outward), Horizontal pivot
- Pivot system: concealed pivot mechanism
- Vitrum option: thin wood profile bonded to external glass sheet
- Vertical max sash size: up to 2.0 m width × 4.0 m height
- Vertical max sash weight: 800 kg
- Horizontal max size: up to 3.0 m width × 1.5 m height
- Horizontal max sash weight: 300 kg
- Rotation: up to 15° for ventilation, up to 360° for cleaning/maintenance
