Stick system curtain wall SKYLINE

glasswoodenaluminum

Overview
Carminati offers a curtain wall system characterized by exceptionally narrow timber profiles that lightly envelop the building and define the façade. Part of the Skyline Minimal Frames collection, the system is highly customizable and adaptable to a wide range of architectural solutions.

Design and appearance
The continuous façade with uprights and transoms provides the glazed wall with the refinement and elegance typical of Italian design. Minimal visible framing combines with large glazed surfaces to create a modern, minimalist aesthetic.

Performance and construction
The Skyline Facade building envelope delivers high energy performance while maximizing natural light and indoor comfort. The timber profile is 50 mm thick and can be externally clad with aluminium. Interior timber improves thermal comfort, while external aluminium cladding ensures high resistance to atmospheric agents.

Visuals and details

• Exterior images showing continuous glazed façades with aluminium bronze-effect cladding.

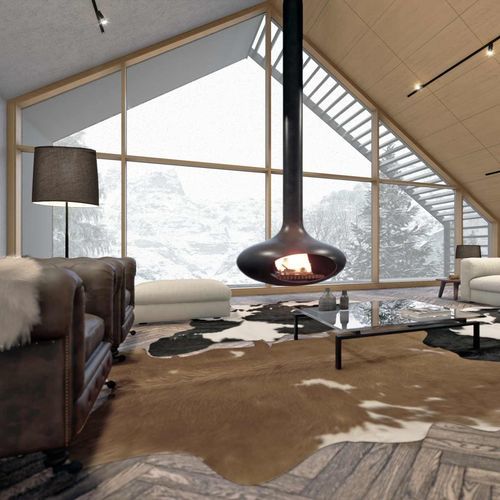

• Interior views illustrating continuous façade in oak with natural finish.
• Close-ups of external aluminium cladding details and bronze-effect finishes.
• Details of integrated hardware such as handles and hinges recessed in the continuous façade.

Technical specifications

• System type: Curtain wall / continuous façade
• Profile thickness: 50 mm (timber profile)
• Main materials: Timber profiles; optional aluminium cladding
• Design: Exceptionally narrow/minimal frames with uprights and transoms
• Thermal comfort: Interior timber to enhance indoor comfort
• Weather resistance: External aluminium cladding for high resistance to atmospheric agents
• Light performance: Designed to maximize natural light
• Customization: Highly customizable and adaptable to architectural requirements
• Design origin: Made in Italy aesthetic and detailing
