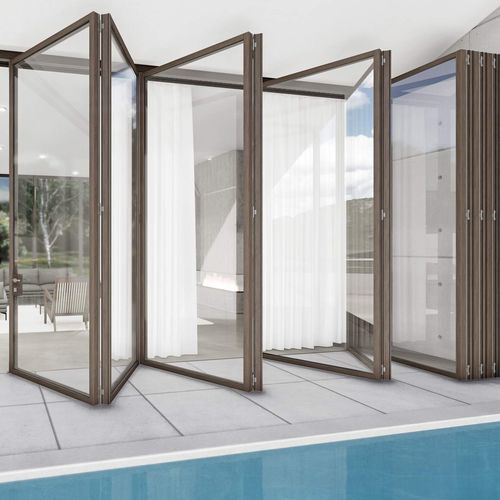

Folding door SKYLINE BIFOLD

entrywoodenchrome

Overview
The Skyline Bifold is a bifolding / pivot door system designed to maximise visual continuity between interior and exterior while preserving minimal sightlines. Available with inward or outward pivoting and a concealed pivot mechanism, the product supports large sashes and wide total openings. The Skyline Vitrum option combines a thin wooden profile with a continuous glass sheet for a refined, transparent finish.

Design and operation

• Minimal wooden profiles to maximise daylight and reduce visible frame area.
• Concealed pivot hardware allowing both inward and outward opening.
• Bifolding system engineered for smooth stacking and effortless operation on large panels.
• Handles and hardware designed ad hoc to ensure reliable, ergonomic movement.

Applications

• Ideal for architectural projects requiring large uninterrupted openings: residences, high-end commercial spaces, contract projects and renovations.
• Creates continuity of space and maximises natural light entry.

Aesthetic options and components

• Skyline Vitrum version: thin wooden profiles paired with a glass sheet for an elegant, light-filled appearance.
• Finishes: examples include oiled mahogany; bespoke wood finishes available on request.
• Hardware examples: internal handle in satin chrome; custom finishings and fittings can be specified.

System and tailor-made details

• Designed to enable very wide total openings (project examples up to 16 m demonstrated).
• Concealed pivot mechanism and custom-engineered bifolding hardware support heavy, large sashes while maintaining minimal sightlines.
• Bespoke manufacturing to match project-specific dimensions and architectural integration.

Technical specifications

• Product name: Skyline Bifold
• Type: Bifold / pivot door / vertical pivot window (minimal frames)
• Material: Wood (Skyline Vitrum combines wood profile and glass sheet)
• Opening: Inward or outward; bifolding stacking for multi-panel systems
• Pivot system: Concealed pivot hardware
• Maximum sash width: up to 2 m
• Maximum sash height: up to 4 m
• Maximum sash weight: 800 kg
• Example total opening demonstrated: up to 16 m (project dependent)
• Finish examples: oiled mahogany; bespoke finishes available
• Handles / fittings: custom-designed hardware; internal handle example in satin chrome
• Customization: tailor-made details and manufacturing for each project
