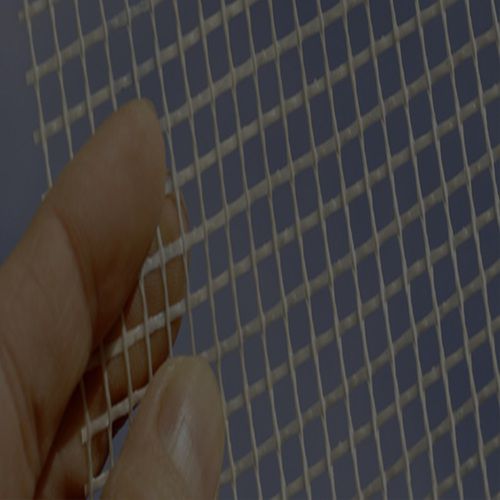

Fiberglass reinforcement grid POLITES AR 330

meshzirconium dioxidefor facade cladding

Product overview
Fiberglass alkali-resistant (AR) mesh for structural reinforced strengthening of stone, brick, tuff and mixed masonry. Contains zirconium dioxide (>16%) and manufactured in a cross-weave, coated construction. Designed for use with Diathonite Sismactive to improve strength and overall ductility.

Packaging and yield

• Yield: 1 m²/m²
• Packaging: roll 1 x 50 m; pallet: 550 m² (11 rolls)
• Drying: not required

Benefits and applications

• Ready to use; quick and easy application
• Lightweight and low thickness
• Excellent mechanical properties in warp and weft
• Weather and atmospheric resistance
• Easy to cut and handle
• Suitable for aggressive environments and all substrate types
• Durable and radiolucent

Composition and compatibility

• Monocomponent
• Alkali-resistant coated fiberglass
• Contains zirconium dioxide (>16%)
• Cross-weave structure
• To be used in combination with Diathonite Sismactive for structural reinforcement

Technical specifications

• Tensile strength (single wire, weft/warp): 3.150 ± 5% kN
• Break elongation: 3.5%
• Tensile strength (weft/warp): 63 ± 5% kN/m
• Glass density (ρ glass): 2.68 ± 5% g/cm³
• Elastic modulus (glass): 72,000 ± 5% N/mm²
• Resistant section (warp): 43.843 ± 5% mm²/m
• Resistant section (weft): 43.843 ± 5% mm²/m
